Heated Seat Module: Description
| 1 - HEATED SEAT MODULE |
| 2 - SEAT CUSHION FRAME |

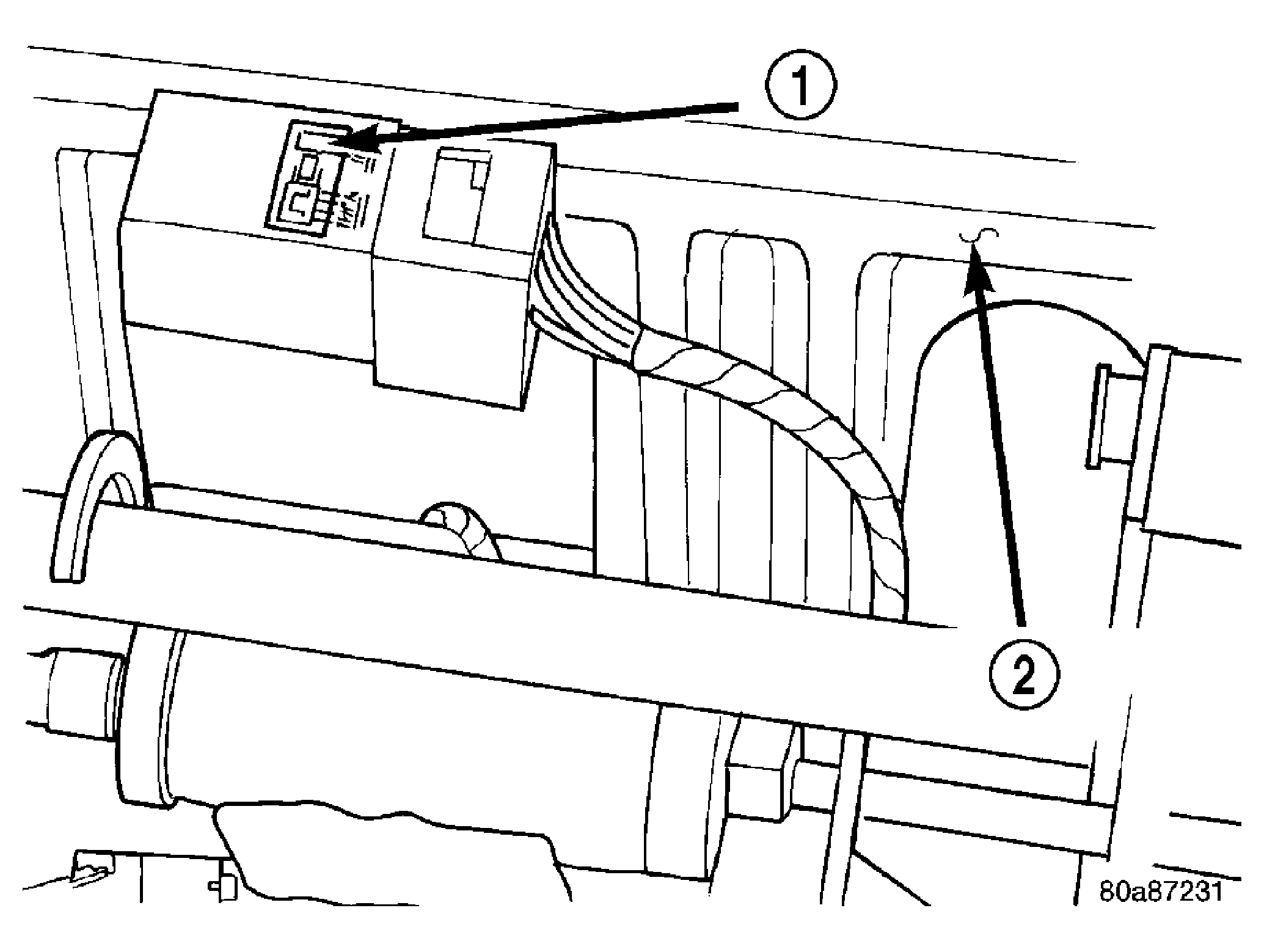

Two heated seat modules are used on this vehicle, one for each front seat. The heated seat modules are located under each front seat cushion frame. See Fig 1. The heated seat module has a single connector receptacle that allows the module to be connected to all of the required inputs and outputs through the body wire harness.
The heated seat module is an electronic microprocessor controlled device designed and programmed to use inputs from the ignition switch, the heated seat switch and the heated seat sensor to operate/control the heated seat elements in each front seat.
The heated seat module cannot be repaired. If the heated seat module is damaged or faulty, the entire module must be replaced.
