Speed Control: Switch: Installation
The speed control switch is mounted in the steering wheel and wired through the clock spring device under the airbag module.
WARNING:
IF REMOVAL OF AIRBAG MODULE IS NECESSARY, REFER TO RESTRAINTS
.
- Connect the electrical connector.

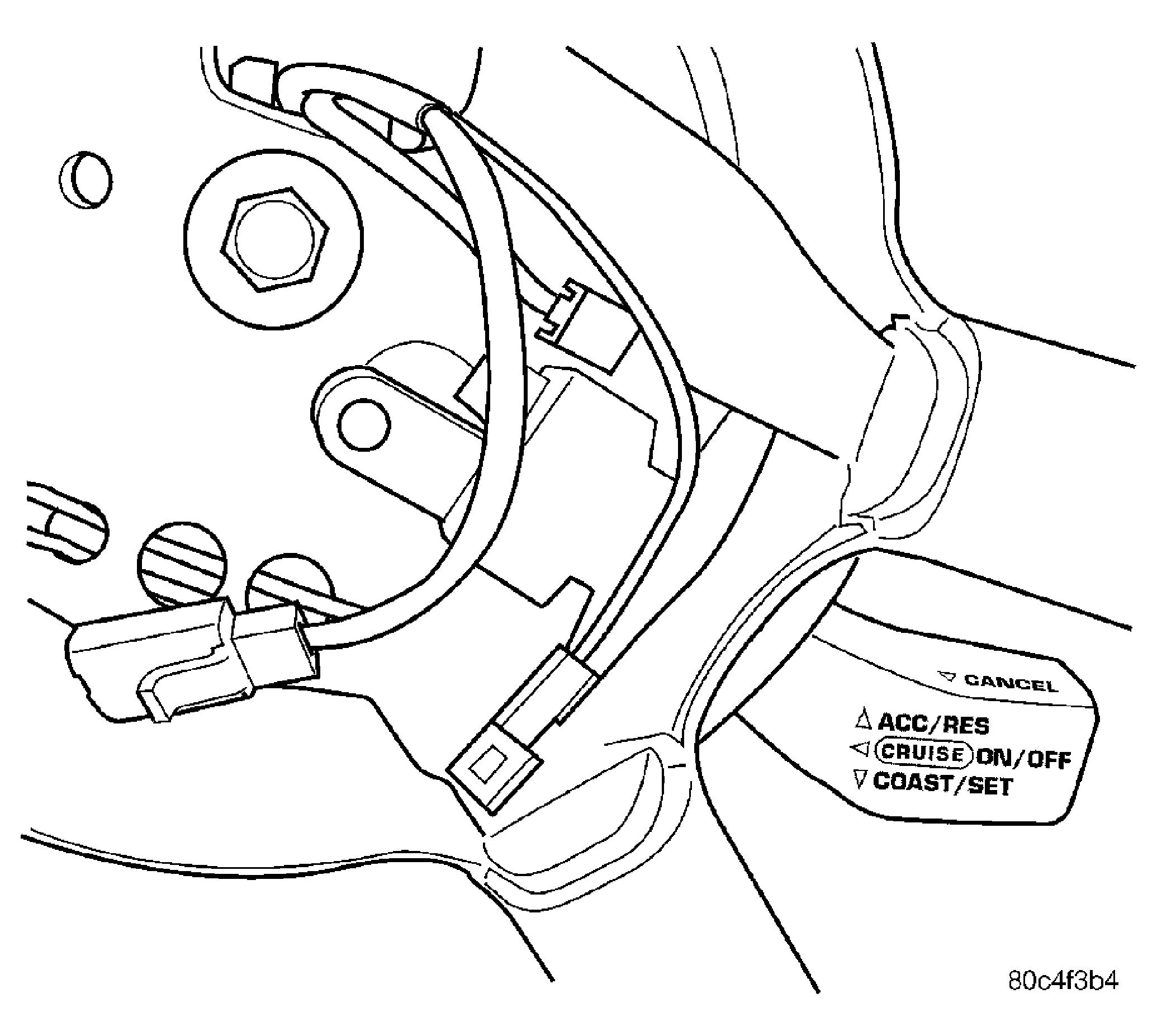

- Install switch and tighten the screws to 1.6 N.m (15 ins. lbs.). Make sure rubber seal is in place around switch. See Figure.
- Install airbag, refer to RESTRAINTS .
- Install the negative battery cable.
