DECKLID Lock Cylinder: Removal

  1. Release decklid latch and open decklid.
  2. Remove decklid latch.
  3. Remove clip attaching decklid lock cylinder to security alarm switch, if so equipped. See Fig 1.
  4. Remove security alarm switch, if so equipped.
  5. Remove clip attaching decklid lock cylinder to decklid.
  6. Remove decklid lock cylinder from vehicle.

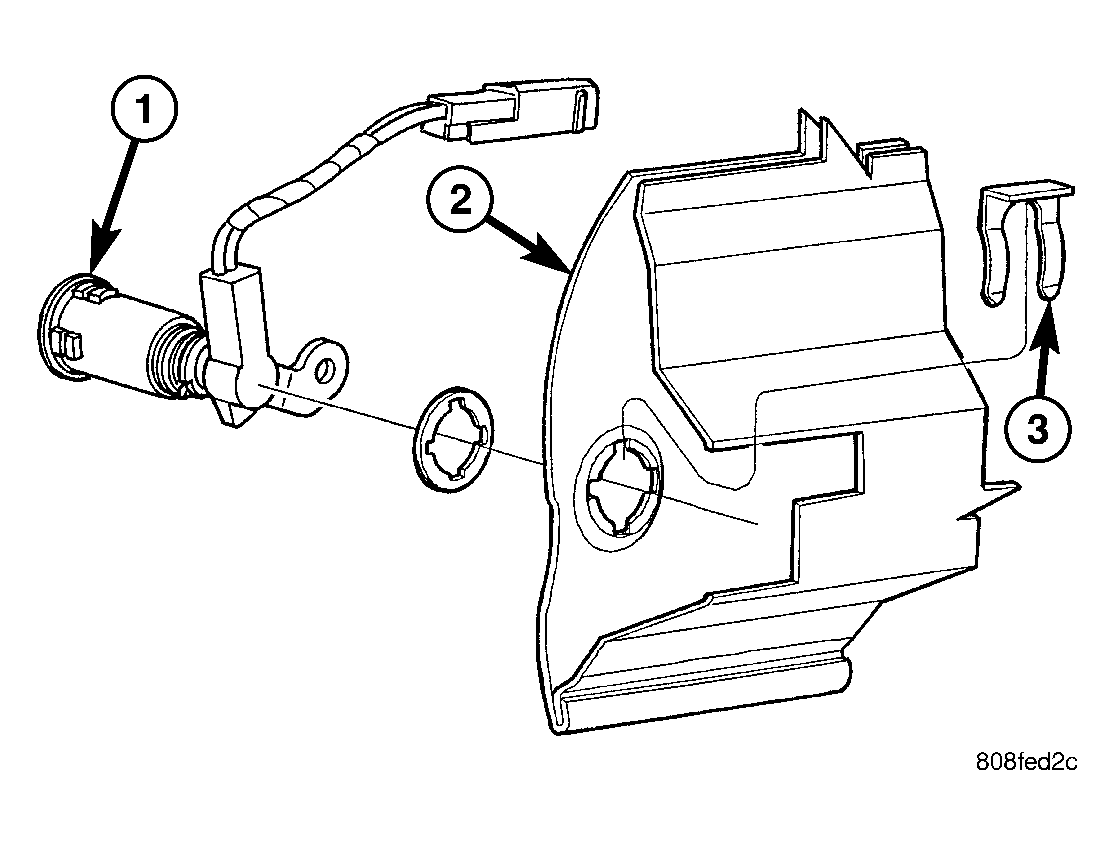

Fig 1: Decklid Lock Cylinder
GC0031346Courtesy of DAIMLERCHRYSLER CORP.
1 - DECKLID LOCK CYLINDER
2 - DECKLID
3 - RETAINER CLIP
