Interior & Exterior: DECKLID/Hatch/Liftgate/Tailgate: DECKLID: Removal

1. Release decklid latch and open decklid.
2. Mark outline of hinge on decklid to aid in installation. See Fig 1.
3. Disconnect all wire connectors from decklid latch and disconnect wire harness from decklid.
4. Place suitable padding between decklid and deck panel to protect paint finish.
5. With aid of a helper, remove bolts attaching decklid to decklid hinge.
6. Remove decklid from vehicle.

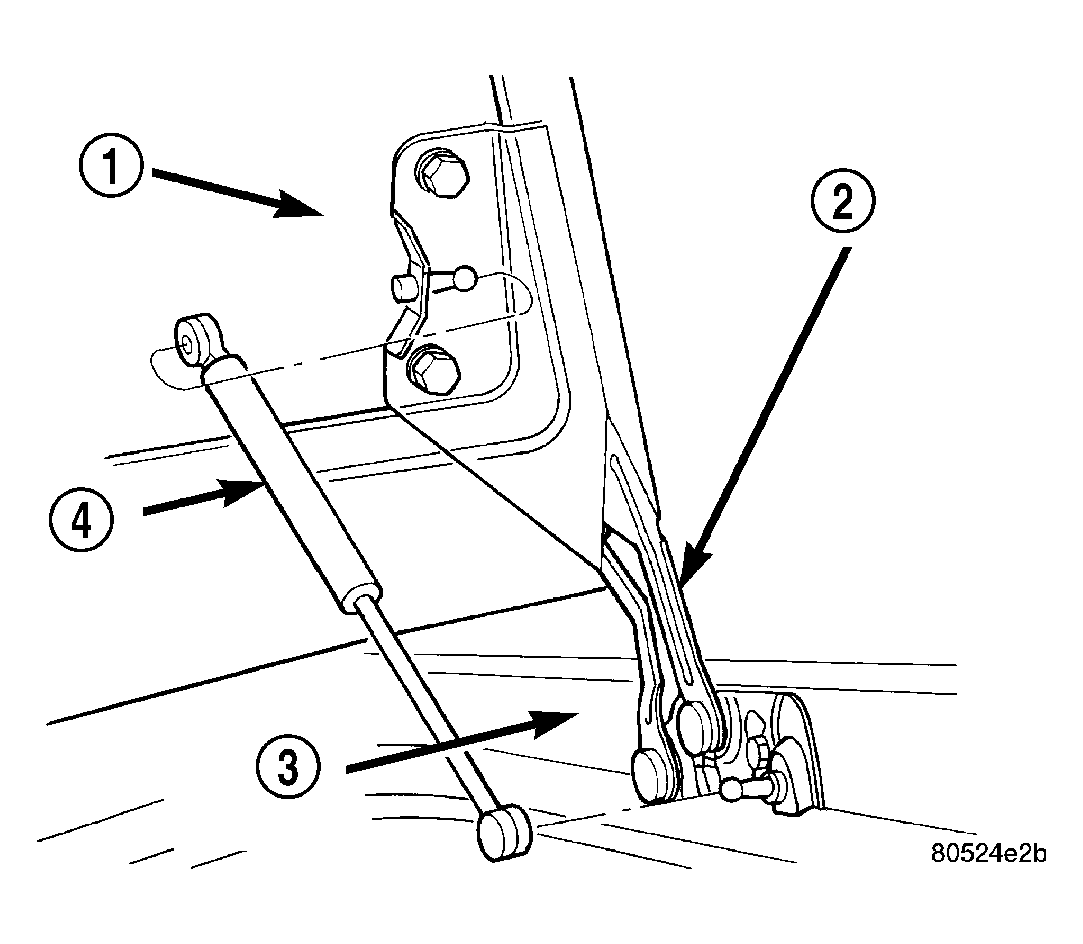

Fig 1: Decklid Hinge And Gas Support Cylinder

Courtesy of DAIMLERCHRYSLER CORP.

1 - TRUNK LID

2 - TRUNK HINGE

3 - QUARTER PANEL TROUGH

4 - GAS SUPPORT CYLINDER
