Sunroof Module Assembly: Removal
- Move glass panel to the fully closed position.
- Disconnect battery negative cable.
- Recline both front seats.
- Remove sunroof opening trim lace. (Refer to BODY/SUNROOF/OPENING TRIM LACE - REMOVAL) .
- Remove control switch. (Refer to BODY/SUNROOF/CONTROL SWITCH) .
- Disconnect wire harness.
- Remove headliner
- Disconnect the drain tubes from sunroof housing.

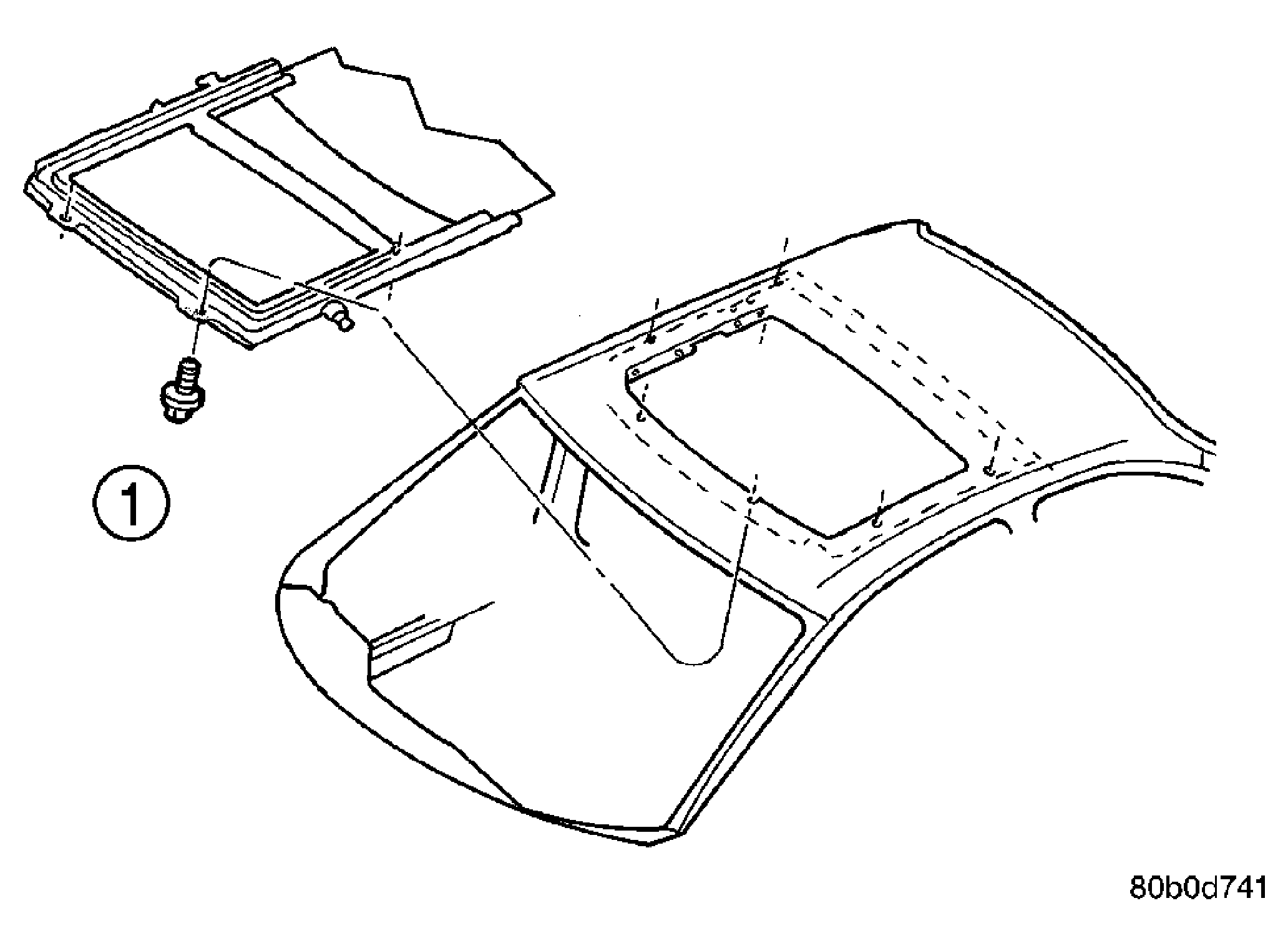

- Loosen fasteners attaching sunroof module assembly. See Fig 1.
- With the aid of a helper, remove fasteners attaching sunroof module assembly to roof panel.
Courtesy of DAIMLERCHRYSLER CORP.
