A/C Heater Control: Description
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

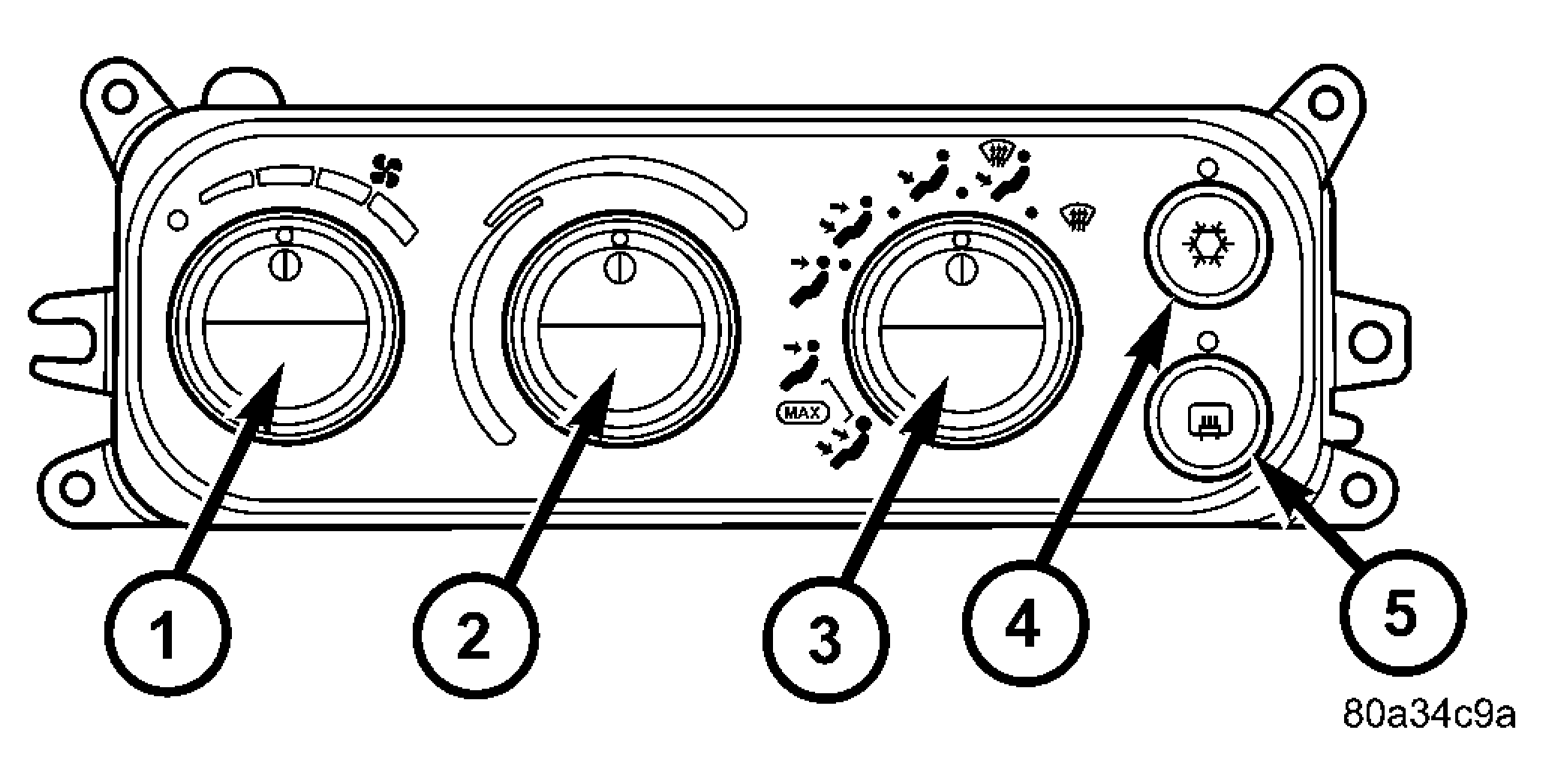

The A/C-heater control for the manual temperature control (MTC) single zone heating-A/C system allows one temperature setting for the entire vehicle. All controls are identified by ISO graphic symbols. See Fig 1.
The A/C-heater control and integral computer is located in the instrument panel and contains:
- a rotary control for fan speed selection.
- a rotary control for temperature control of the discharged air.
- a rotary control for recirculation and mode control of the discharged air.
- a push button A/C on/off control. The Snowflake button contains an LED that illuminates when the A/C system is in operation.
- a push button rear window defogger on/off control. The defogger button contains an LED that illuminates when the rear window defogger (EBL) system is in operation.
The A/C-heater control cannot be repaired and, if faulty or damaged, it must be replaced. The illumination lamps are available for service replacement.
| 1 - BLOWER SPEED CONTROL |
| 2 - TEMPERATURE CONTROL |
| 3 - MODE CONTROL |
| 4 - A/C SELECT SWITCH |
| 5 - REAR WINDOW DEFOGGER SWITCH |
