Controller Antilock Brake: Installation

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install CAB onto HCU.

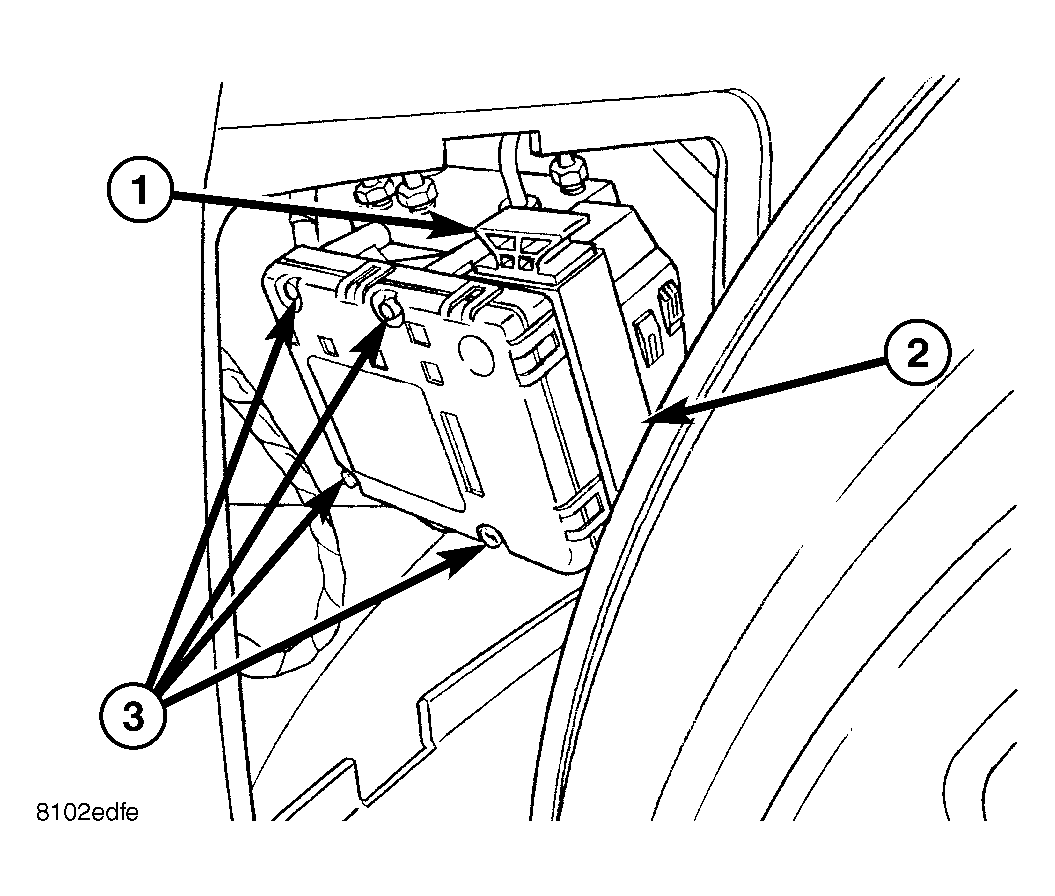

  2. Install four CAB mounting bolts and tighten to 2 N.m (17 in. lbs.) torque. See Figure.

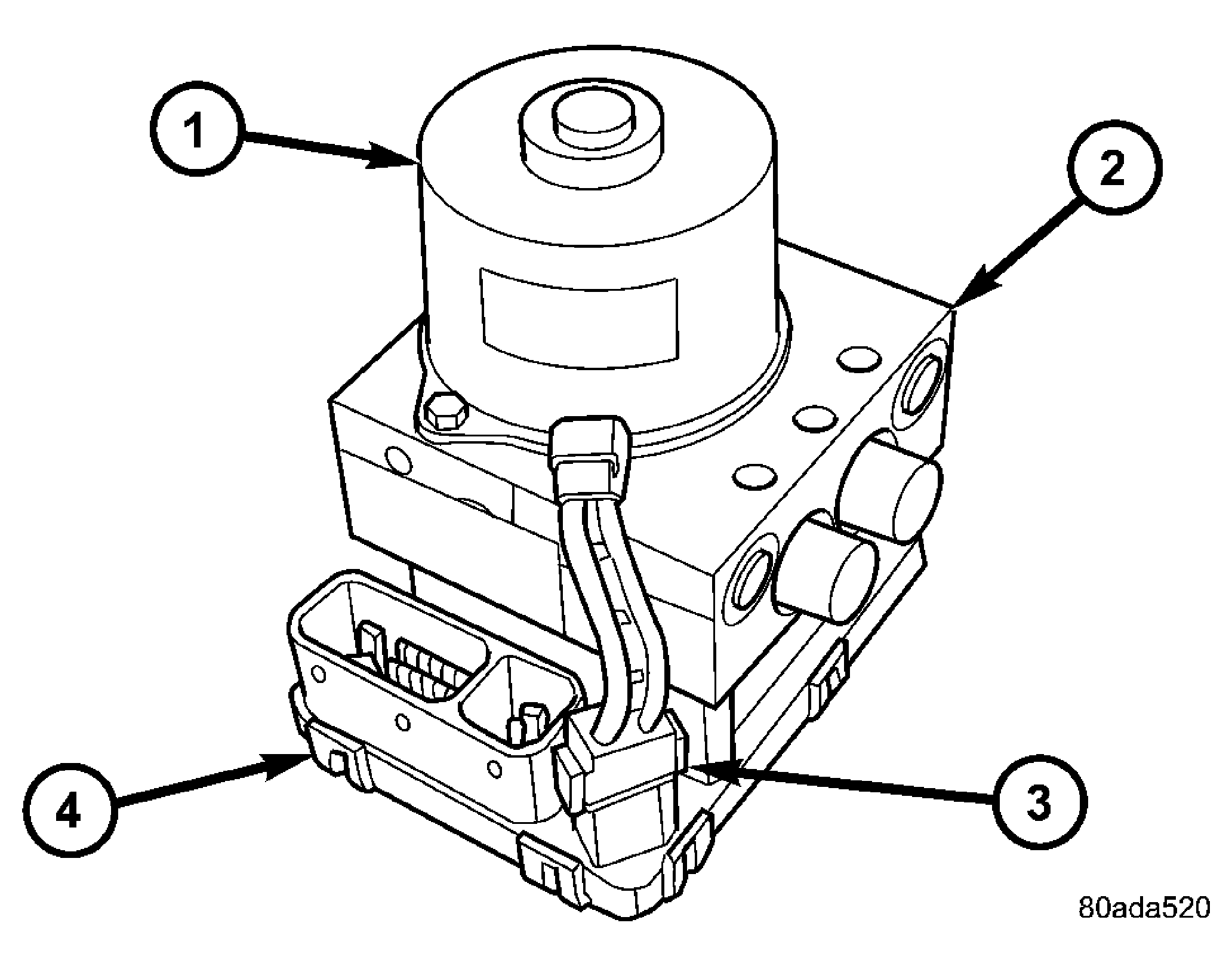

  3. Connect pump/motor wiring connector. See Figure.
    CAUTION: Before installing the 24-way connector in the CAB, be sure the seal is properly installed in the connector.
  4. Install 24-way connector into socket of CAB as follows:
    1. Position 24-way connector in socket of CAB and carefully push it down as far as possible.
    2. Once connector is fully seated into CAB socket, push connector lock inward. This pulls connector into socket of CAB and locks it in place.
  5. Install access panel in forward portion of left front wheel well.
  6. Install tire and wheel assembly. TIRES/WHEELS . Progressively tighten the wheel mounting nuts in the proper sequence to 122 N.m (90 ft. lbs.) torque.
  7. Lower vehicle.
  8. Reconnect battery negative (-) terminal.
  9. Connect DRBIII® to data link connector below steering column to initialize new CAB. Check for any faults.
  10. Road test vehicle to ensure proper operation of ABS.
