Central Timer Module: Removal

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Slide the driver seat to the full forward position.
Disconnect the wire harness connector for the seat belt latch. See Fig 1.
Remove the screws that secure the closeout panel beneath the driver seat cushion and remove the panel.
Remove the screws that secure the Central Timer Module (CTM) to the bracket.
Disconnect the wire harness connectors from the CTM.
Remove the CTM from the vehicle.

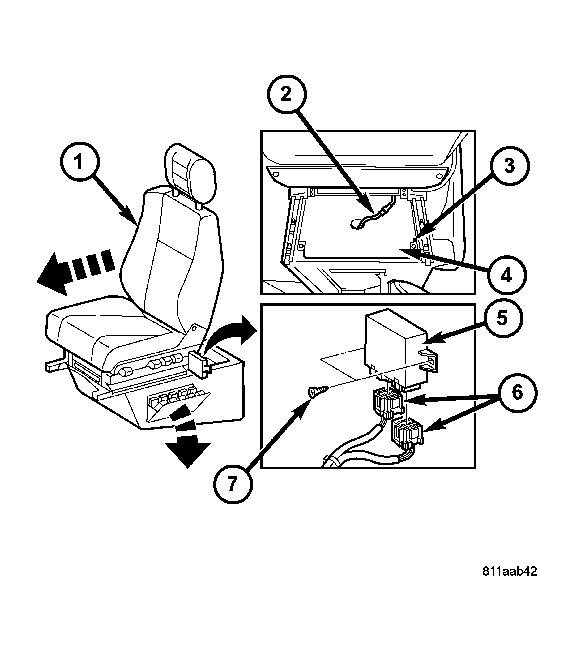

Fig 1: Central Timer Module

Courtesy of DAIMLERCHRYSLER CORP.

1 - DRIVER SEAT

2 - WIRE HARNESS CONNECTOR

3 - SCREW (2)

4 - CLOSEOUT PANEL

5 - CENTRAL TIMER MODULE

6 - WIRE HARNESS CONNECTOR (2)

7 - SCREW (2)
