*No Response From Shift Lever Assembly: Notes
WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

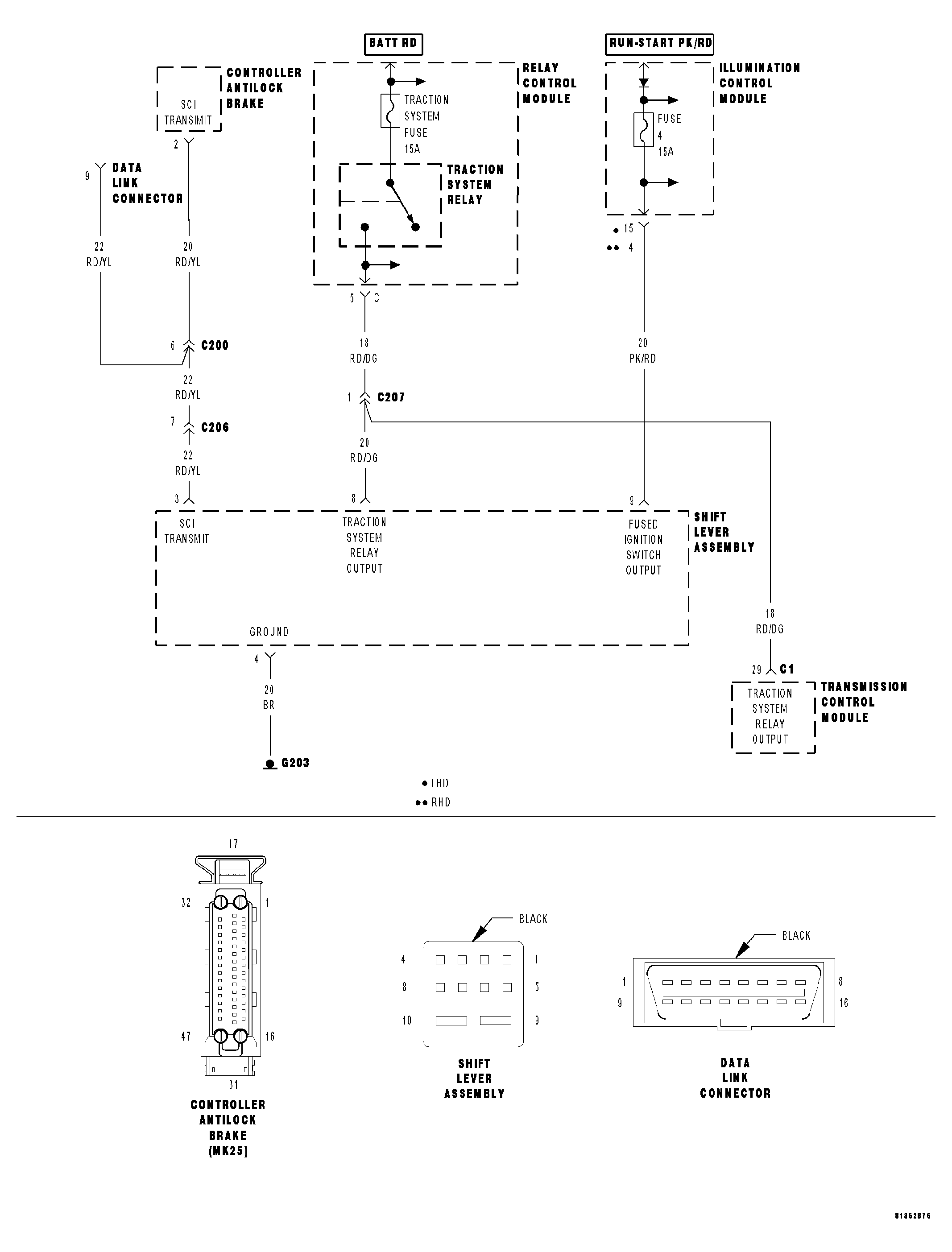

| POSSIBLE CAUSES |
|---|
| TRACTION SYSTEM RELAY OUTPUT CIRCUIT OPEN |
| FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN |
| GROUND CIRCUIT OPEN |
| SCI TRANSMIT CIRCUIT OPEN |
| SCI TRANSMIT CIRCUIT SHORTED TO GROUND |
| SCI TRANSMIT CIRCUIT SHORTED TO VOLTAGE |
| CONTROLLER ANTILOCK BRAKE |
| SHIFT LEVER ASSEMBLY |
For a complete Data Link Connector Circuit Diagram, (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES - SCHEMATICS AND DIAGRAMS) .
