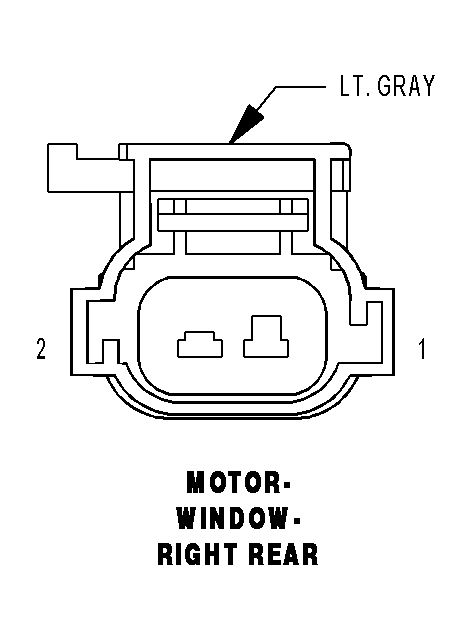

Right Rear Window Motor Connector End View
MOTOR-WINDOW-RIGHT REAR - LT. GRAY 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q212 16OR/VT |
RIGHT REAR WINDOW DRIVER (DOWN) |
| 2 |
Q112 16OR/BR |
RIGHT REAR WINDOW DRIVER (UP) |
