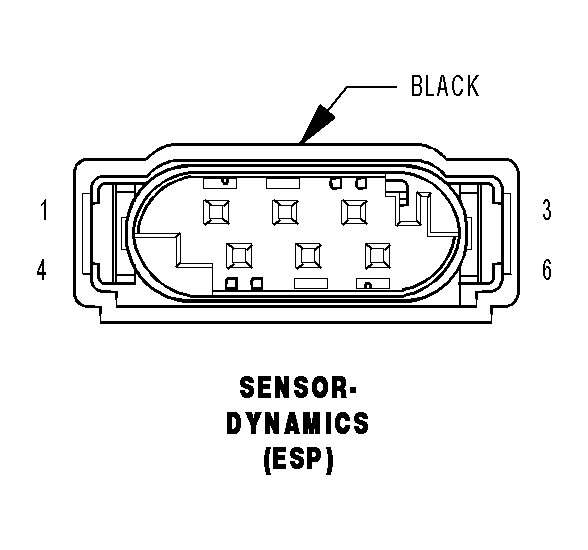

Dynamics Sensor (Electronic Stability Program) Connector End View
SENSOR-DYNAMICS (ESP) - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D51 20WT/BR |
DYNAMICS SENSOR LOW DATA LINK |
| 2 |
D52 20WT/LB |
DYNAMICS SENSOR HIGH DATA LINK |
| 3 |
G4 20VT/LB |
DYNAMICS SENSOR SUPPLY |
| 4 |
- |
- |
| 5 |
G94 20VT/DB |
DYNAMICS SENSOR GROUND |
| 6 |
- |
- |
