Front Control Ipm Module Connector End View

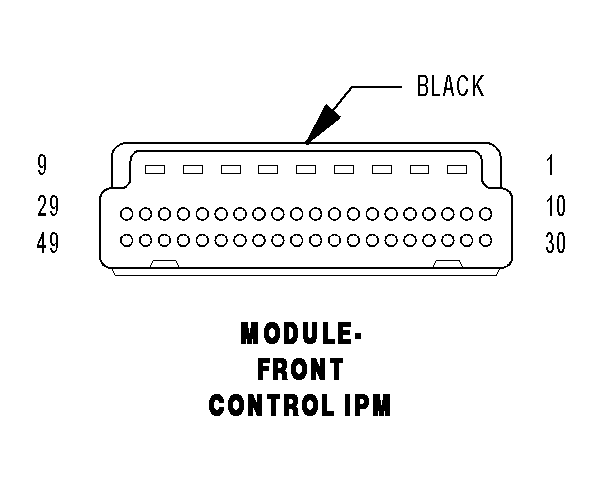

MODULE-FRONT CONTROL IPM - BLACK 49 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	A906	FUSED B(+)
3	A902	FUSED B(+)
4	A901	FUSED B(+)
5	A903	FUSED B(+)
6	-	-
7	L1	BACKUP LAMP FEED
8	-	-
9	-	-
10	W24 (HID LAMPS)	HEADLAMP WASHER RELAY CONTROL
11	W20 (LX49)	REAR WASHER PUMP MOTOR CONTROL
12	W10	FRONT WASHER PUMP MOTOR CONTROL
13	F902	IGNITION UNLOCK-RUN-START
14	K361 (DIESEL)	PTC NO. 2 RELAY CONTROL
15	X13	FUSED B(+) (I.O.D.)
16	K360 (DIESEL)	PTC NO. 1 RELAY CONTROL
17	F202	FUSED IGNITION SWITCH OUTPUT (RUN-START)
18	Z901	GROUND
19	-	-
20	-	-
21	L239 (EXPORT)	REAR FOG LAMP RELAY CONTROL
22	F923	RUN RELAY CONTROL
23	-	-
24	-	-
25	Z901	GROUND
26	L139	FRONT FOG LAMP RELAY CONTROL
27	W5	WIPER ON/OFF RELAY CONTROL
28	W12 (LX49)	REAR WIPER RELAY CONTROL
29	W2	WIPER HIGH/LOW RELAY CONTROL
30	K542	ASD RELAY OUTPUT
31	W7	FRONT WIPER PARK SWITCH SENSE
32	-	-
33	Z901	GROUND
34	L62	RIGHT REAR TURN SIGNAL CONTROL
35	C918	A/C PRESSURE SENSOR GROUND
36	-	-
37	-	-
38	P307	ACCESSORY DELAY RELAY CONTROL
39	N201	RADIATOR FAN CONTROL RELAY CONTROL
40	-	-
41	Z901	GROUND
42	-	-
43	L63	LEFT REAR TURN SIGNAL CONTROL
44	-	-
45	N112	RADIATOR FAN HIGH RELAY CONTROL
46	P201 (EXCEPT MEMORY)	ADJUSTABLE PEDALS RELAY CONTROL
47	X4	HORN RELAY CONTROL
48	L177	PARK LAMP RELAY CONTROL
49	K175 (AWD/SRT8/DIESEL)	RADIATOR FAN RELAY COIL SIGNAL
