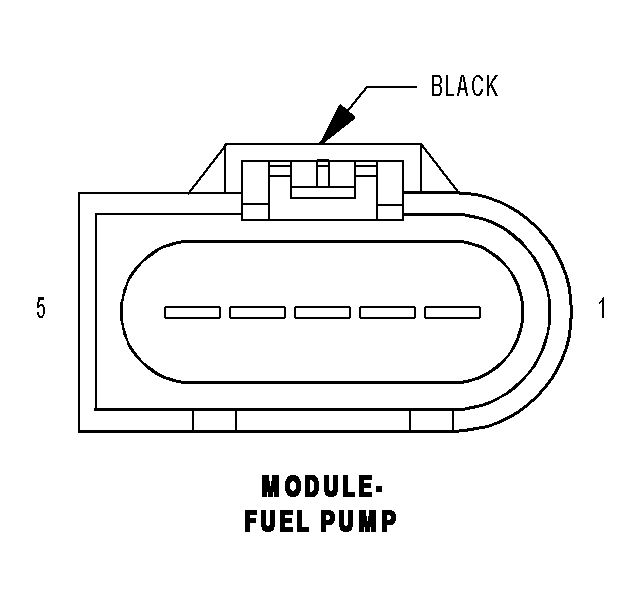

Fuel Pump Module Connector End View
MODULE-FUEL PUMP - BLACK 5 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
N4 20DB/WT |
FUEL LEVEL SENSOR NO. 1 SIGNAL |
| 2 |
Z210 20BK |
GROUND |
| 3 |
N5 20DB/WT |
FUEL LEVEL SENSOR NO. 2 SIGNAL |
| 4 |
Z912 16BK/OR |
GROUND |
| 5 |
N1 16DB/OR |
FUEL PUMP RELAY OUTPUT |
