Generator Connector End View

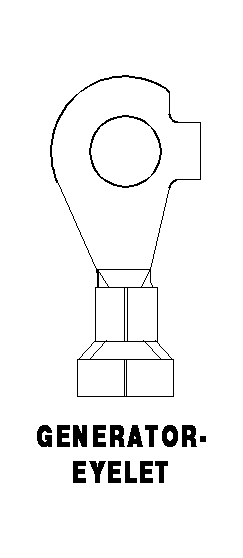

GENERATOR-EYELET - 1 WAY

GCLX680148Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A802 4RD B(+)
1 A802 12BK (DIESEL) B(+)
