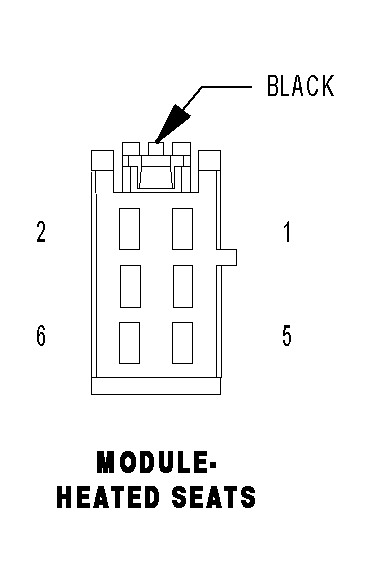

Heated Seats Module Connector End View
MODULE-HEATED SEATS - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z911 18BK/WT |
GROUND |
| 2 |
A33 14RD/YL |
FUSED B(+) |
| 3 |
P187 20LG/BR |
LEFT SEAT HEATER B(+) DRIVER |
| 4 |
P188 20LG/VT |
RIGHT SEAT HEATER B(+) DRIVER |
| 5 |
D54 20WT |
CAN B BUS (-) |
| 6 |
D55 20WT/OR |
CAN B BUS (+) |
