Input Speed Sensor (RLE) Connector End View

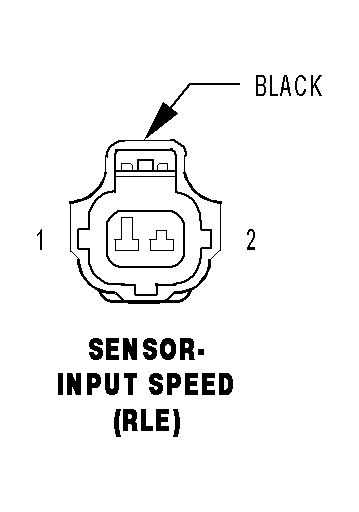

SENSOR-INPUT SPEED (RLE) - BLACK 2 WAY

GCLX680335Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 T13 20DG/VT SENSOR GROUND
2 T52 20DG/OR INPUT SPEED SENSOR SIGNAL
