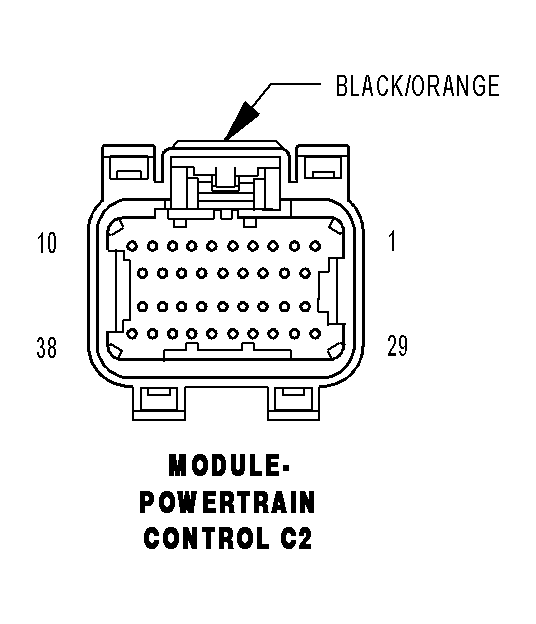

Powertrain Control Module Connector End View (C2)

MODULE-POWERTRAIN CONTROL C2 - BLACK/ORANGE 38 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K10 18DB/OR (3.5L LATE BUILD)	COIL CONTROL NO. 6
1	K10 16DB/OR (EXCEPT 3.5L LATE BUILD)	COIL CONTROL NO. 6
2	K16 18DB/YL (3.5L LATE BUILD)	COIL CONTROL NO. 5
2	K16 16DB/YL (EXCEPT 3.5L LATE BUILD)	COIL CONTROL NO. 5
3	K15 18DB/GY (3.5L LATE BUILD)	COIL CONTROL NO. 4
3	K15 16DB/GY (EXCEPT 3.5L LATE BUILD)	COIL CONTROL NO. 4
4	K58 20BR/VT	INJECTOR CONTROL NO. 6
5	K38 20BR/OR	INJECTOR CONTROL NO. 5
6	K124 18DB/GY	ETC MOTOR (+)
7	K18 18DB/LG (3.5L LATE BUILD)	COIL CONTROL NO. 3
7	K18 16DB/LG (EXCEPT 3.5L LATE BUILD)	COIL CONTROL NO. 3
8	K35 20DB/VT (EXCEPT SRT8)	EGR SOL CONTROL
9	K17 18DB/TN (3.5L LATE BUILD)	COIL CONTROL NO. 2
9	K17 16DB/TN (EXCEPT 3.5L LATE BUILD)	COIL CONTROL NO. 2
10	K19 18DB/DG (3.5L LATE BUILD)	COIL CONTROL NO. 1
10	K19 16DB/DG (EXCEPT 3.5L LATE BUILD)	COIL CONTROL NO. 1
11	K14 20BR/TN	INJECTOR CONTROL NO. 4
12	K13 20BR/LB	INJECTOR CONTROL NO. 3
13	K12 20BR/DB	INJECTOR CONTROL NO. 2
14	K11 20BR/YL	INJECTOR CONTROL NO. 1
15	K922 18BR/DB	TP SENSOR RETURN
16	K136 18BR (2.7L/3.5L)	MTV CONTROL
16	K453 20BR/DG (5.7L MDS)	MDS SOL CONTROL NO. 6
17	K199 20BR/VT	O2 2/1 HEATER CONTROL
18	K99 20BR/LG	O2 1/1 HEATER CONTROL
19	K20 18BR/GY	GEN FIELD CONTROL
20	K2 20VT/OR	ECT SIGNAL
21	K22 18BR/OR	TP SENSOR NO. 1 SIGNAL
22	K34 20DB/LG (EXCEPT SRT8)	EGR SIGNAL
23	K1 20VT/BR	MAP SIGNAL
24	K942 20BR/LG	KNOCK SENSOR NO. 1 RETURN
25	K42 20DB/YL	KNOCK SENSOR NO. 1 SIGNAL
26	-	-
27	K900 20DB/DG	SENSOR GROUND
28	K122 18BR/DG	TP SENSOR NO. 2 SIGNAL
29	F855 20PK/YL	5 VOLT SUPPLY
30	K21 20DB/LG	IAT SIGNAL
31	K41 20DB/LB	O2 1/1 SIGNAL
32	K902 20BR/DG	O2 RETURN (UP)
33	K43 20DB/LG	O2 2/1 SIGNAL
34	K44 20DB/GY	CMP SIGNAL
35	K24 20DB/WT	CKP SIGNAL
36	K242 20BR/WT (5.7L/SRT8)	KNOCK SENSOR NO. 2 SIGNAL
37	K924 20WT/BR (5.7L/SRT8)	KNOCK SENSOR NO. 2 RETURN
38	K126 18DB/LG	ETC MOTOR (-)
