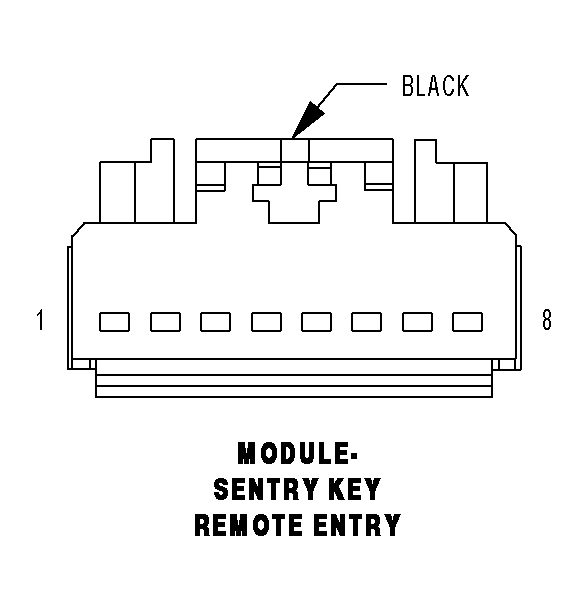

Sentry Key Remote Entry Module Connector End View
MODULE-SENTRY KEY REMOTE ENTRY - BLACK 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | D508 20WT/GY | TIRE PRESSURE BUS |
| 3 | F202 20PK/GY | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 4 | Z910 18BK/TN | GROUND |
| 5 | A23 20RD/YL (LHD) | FUSED B(+) (I.O.D.) |
| 5 | A917 18RD/TN (RHD) | FUSED B(+) |
| 6 | D55 20WT/OR | CAN B BUS (+) |
| 7 | D54 20WT | CAN B BUS (-) |
| 8 | - | - |
