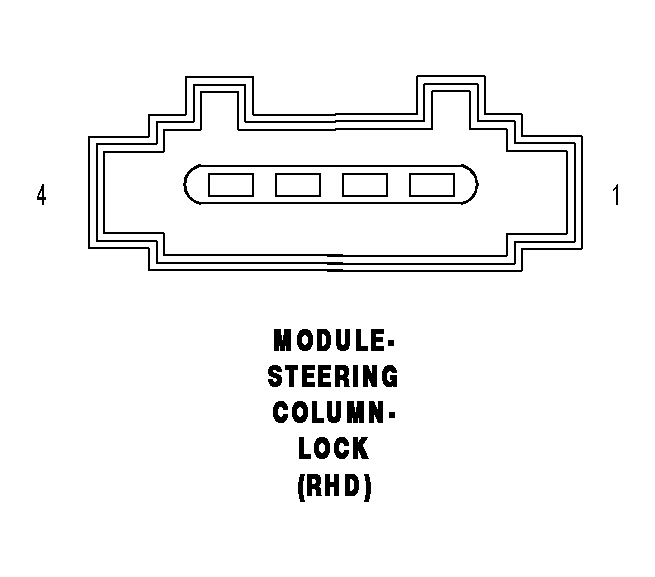

Steering Column Lock Module (RHD) Connector End View
MODULE-STEERING COLUMN-LOCK (RHD) - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A917 18RD/TN |
FUSED B(+) |
| 2 |
Z910 20BK/TN |
GROUND |
| 3 |
F892 20PK/LB |
IGNITION SWITCH OUTPUT (KEY-IN) |
| 4 |
D508 20WT/GY |
TIRE PRESSURE BUS |
