Module-Powertrain Control: Installation: 1.6L

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

The PCM engine control strategy prevents reduced idle speeds until after the engine operates for 320 km (200 miles). If the PCM is replaced after 320 km (200 miles) of usage, update the mileage and vehicle identification number (VIN) in the new PCM. Use the scan tool to change the millage and VIN in the PCM. If this step is not done a Diagnostic Trouble Code (DTC) may be set. Refer to the appropriate Powertrain Diagnostic and scan tool.

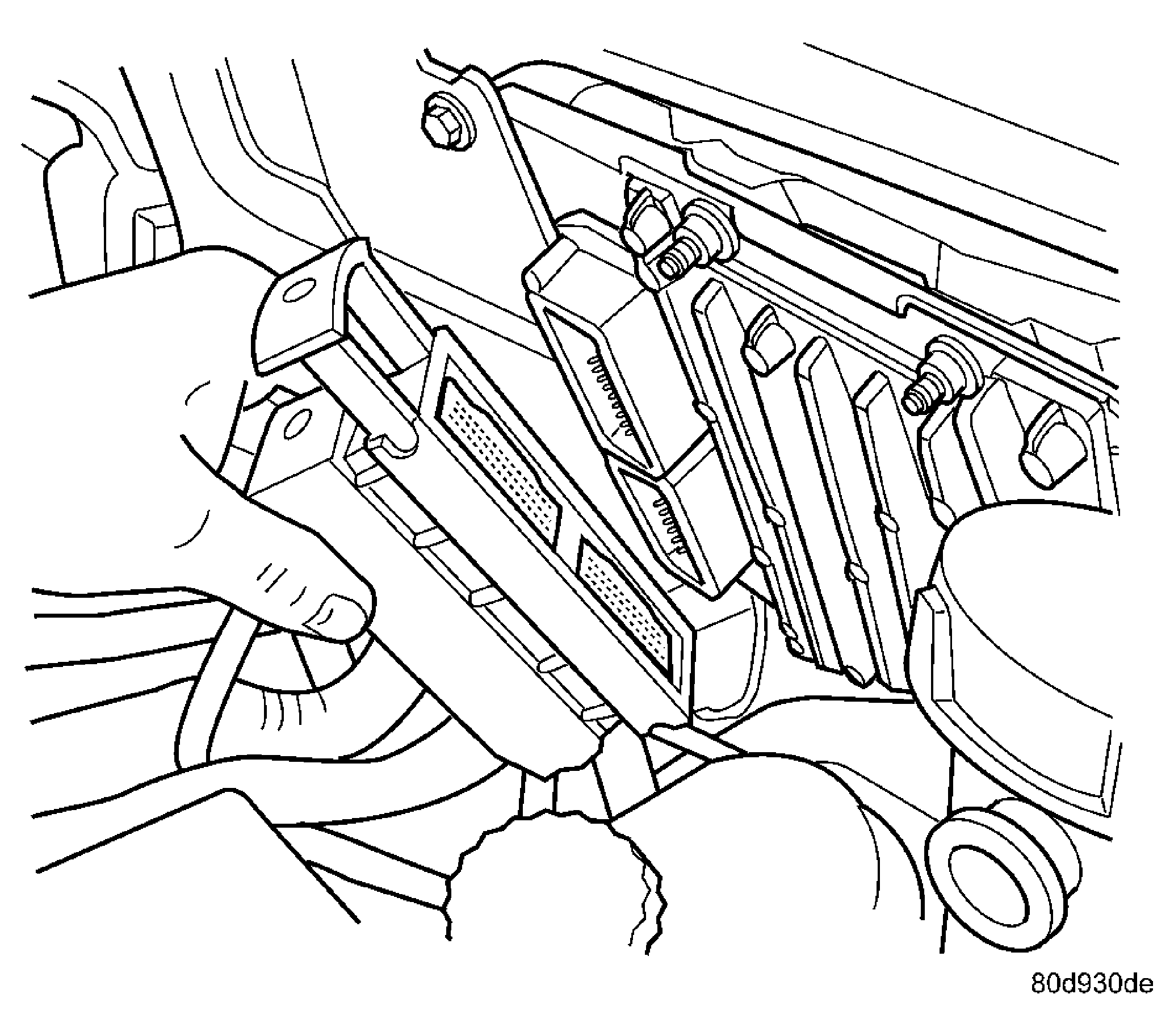

Fig 1: Removing/Installing Powertrain Control Module

Courtesy of DAIMLERCHRYSLER CORP.

The PCM attaches to a bracket which attaches to the dash panel welded bracket.

Install PCM. Tighten mounting nuts to 10.7 N.m (95 ins. lbs.).

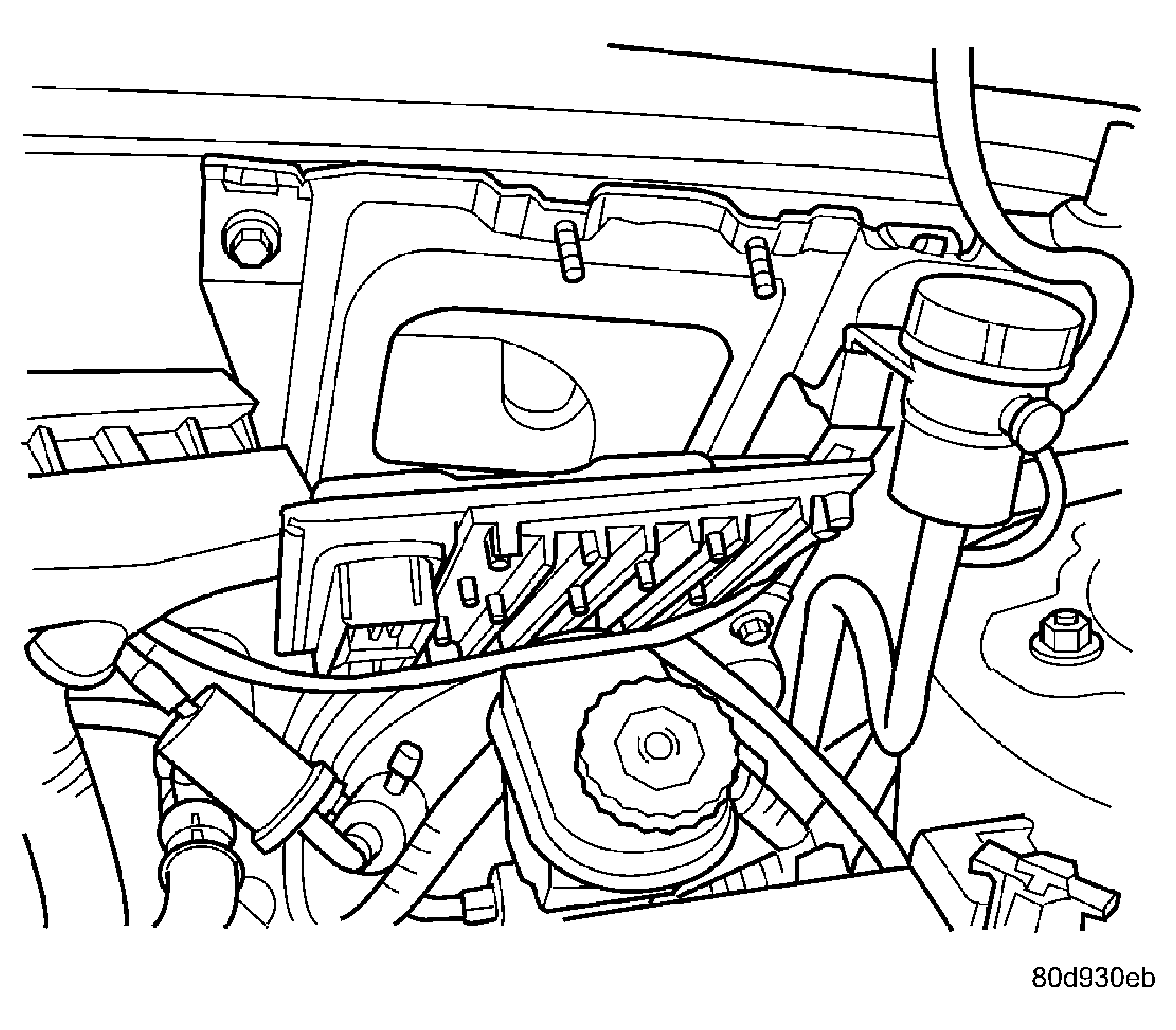

Fig 2: Identifying PCM Connector
Courtesy of DAIMLERCHRYSLER CORP.
Attach electrical connectors to PCM.

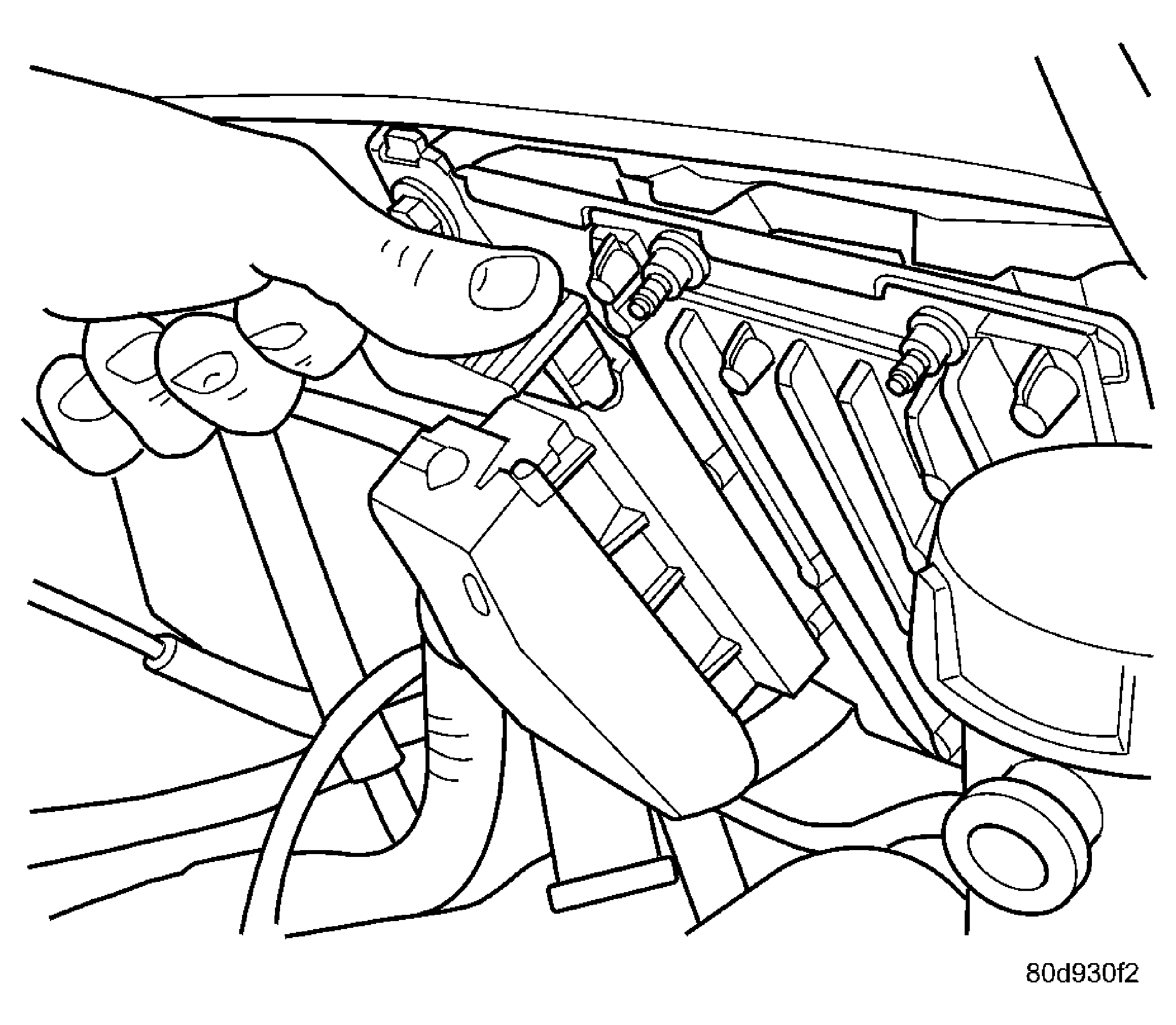

Fig 3: Locking PCM Connector
Courtesy of DAIMLERCHRYSLER CORP.
Lock the PCM connector.

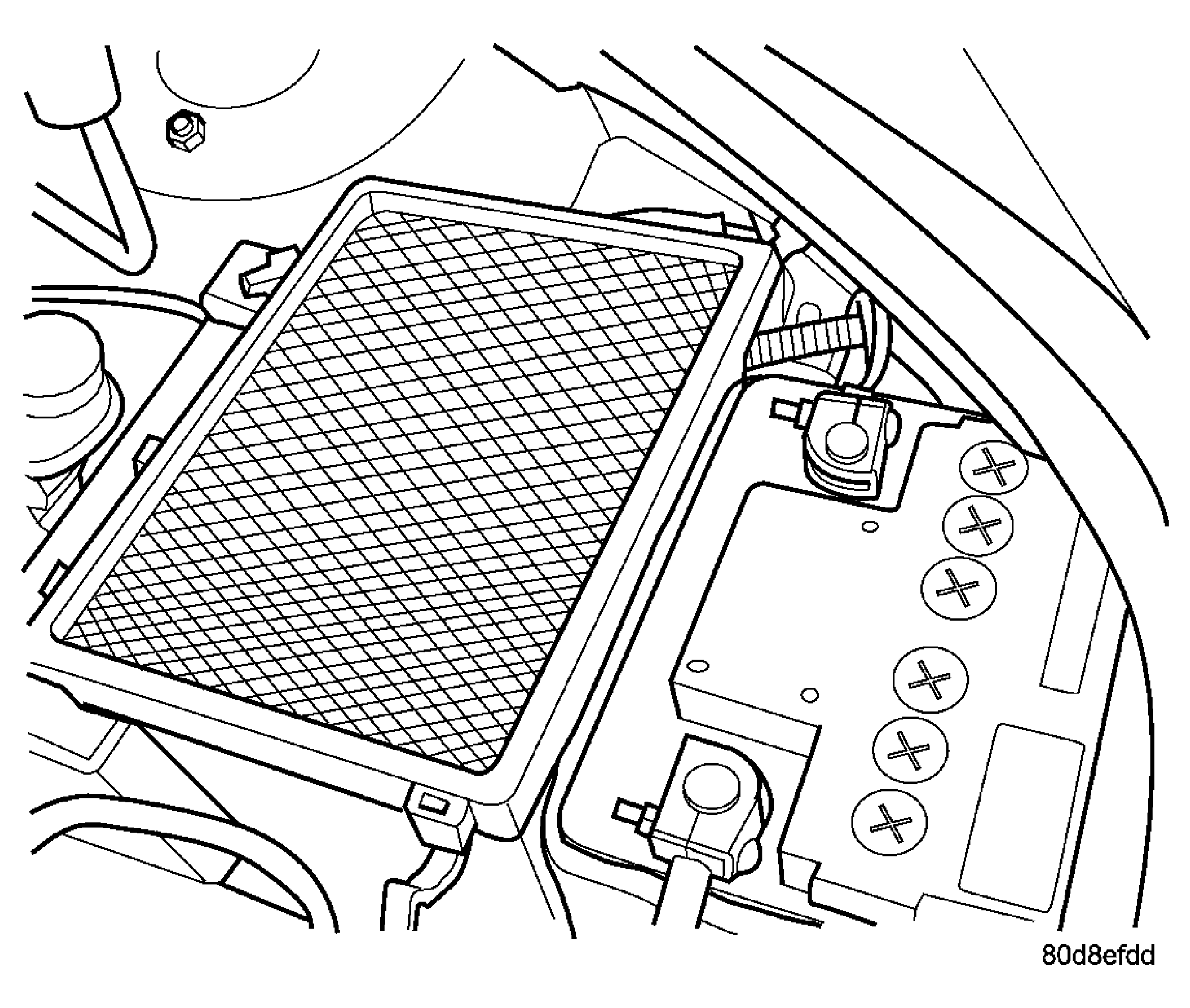

Fig 4: View Of Battery
Courtesy of DAIMLERCHRYSLER CORP.
Install the negative battery cable.

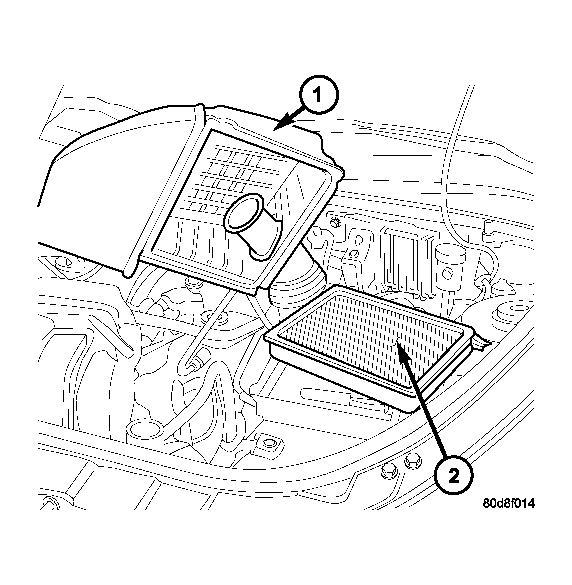

Fig 5: Air Cleaner Housing Cover
Courtesy of DAIMLERCHRYSLER CORP.
Install the air cleaner lid (1), connect the inlet air temperature sensor and makeup air hose.
