42RLE Automatic Transmission (Service Information): Converter-Torque: Operation: Notes

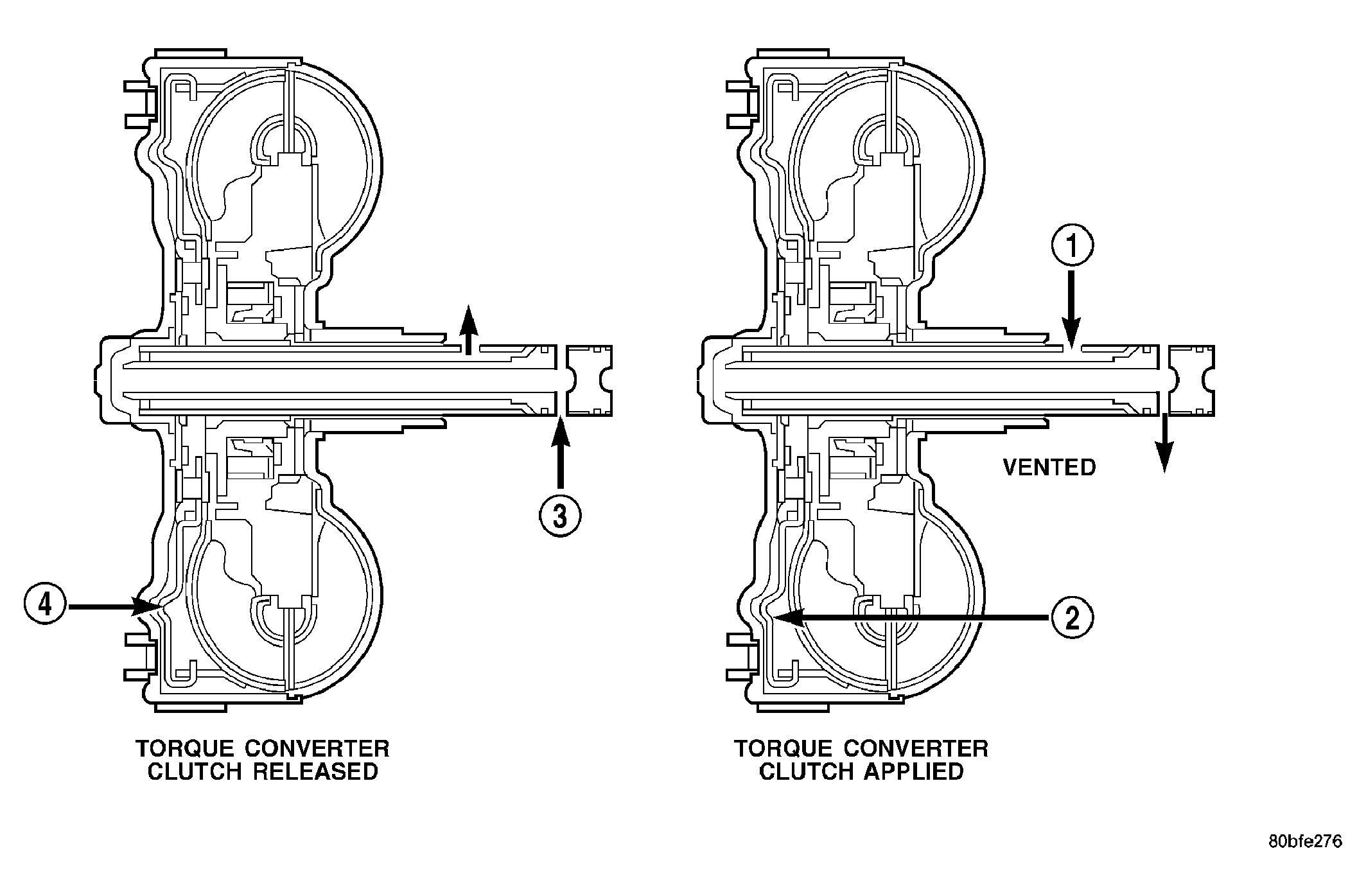

Fig 1: Torque Converter Fluid Operation - Typical

Courtesy of CHRYSLER LLC

1 - APPLY PRESSURE	3 - RELEASE PRESSURE
2 - THE PISTON MOVES SLIGHTLY FORWARD	4 - THE PISTON MOVES SLIGHTLY REARWARD

The converter impeller (driving member), which is integral to the converter housing and bolted to the engine drive plate, rotates at engine speed. The converter turbine (driven member), which reacts from fluid pressure generated by the impeller, rotates and turns the transmission input shaft. See Fig 1.
