Circuit Schematic

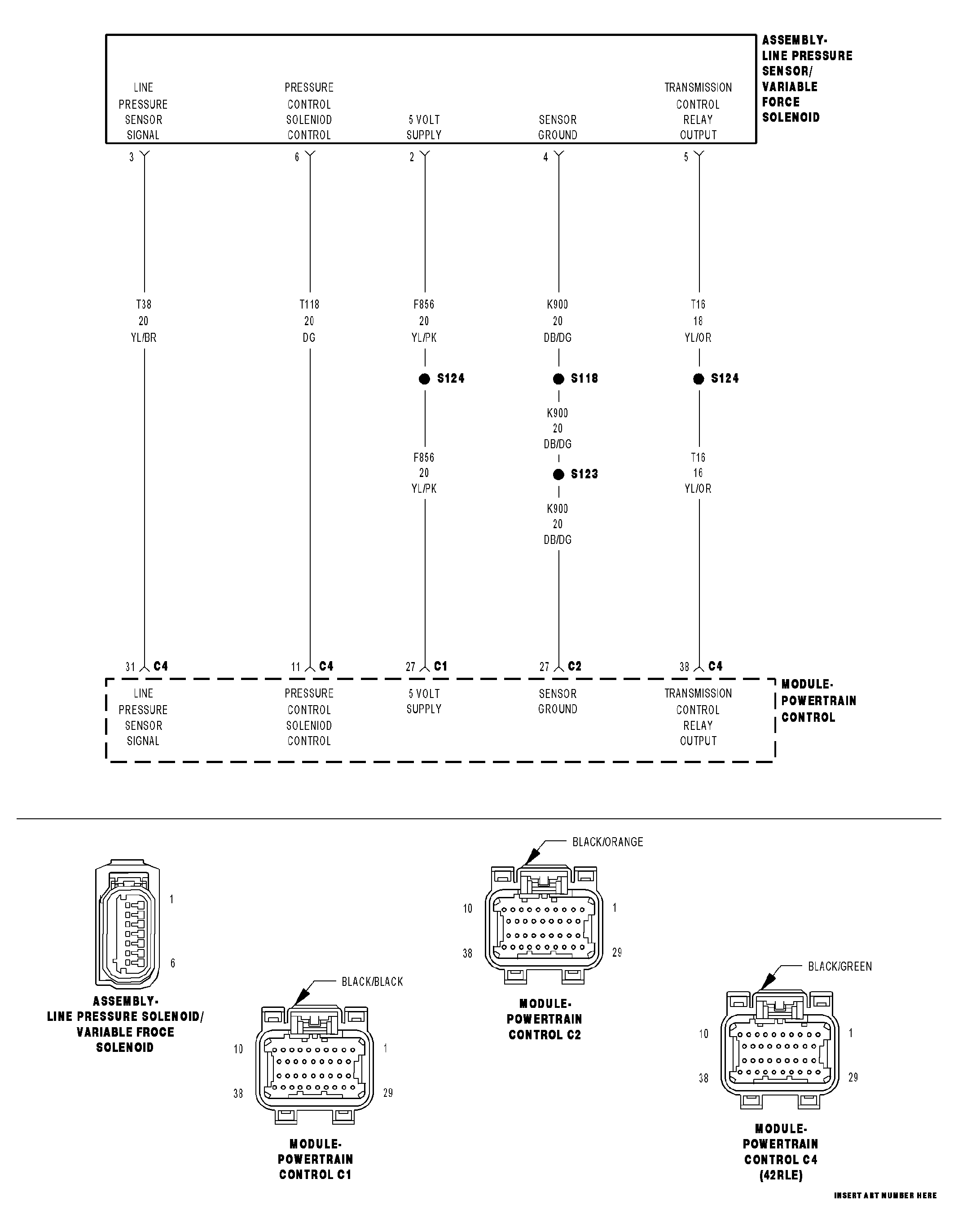

Fig 1: Line Pressure Sensor/Variable Force Solenoid Assembly Circuit Schematic

GC0038076

Courtesy of CHRYSLER LLC
