Circuit Schematic

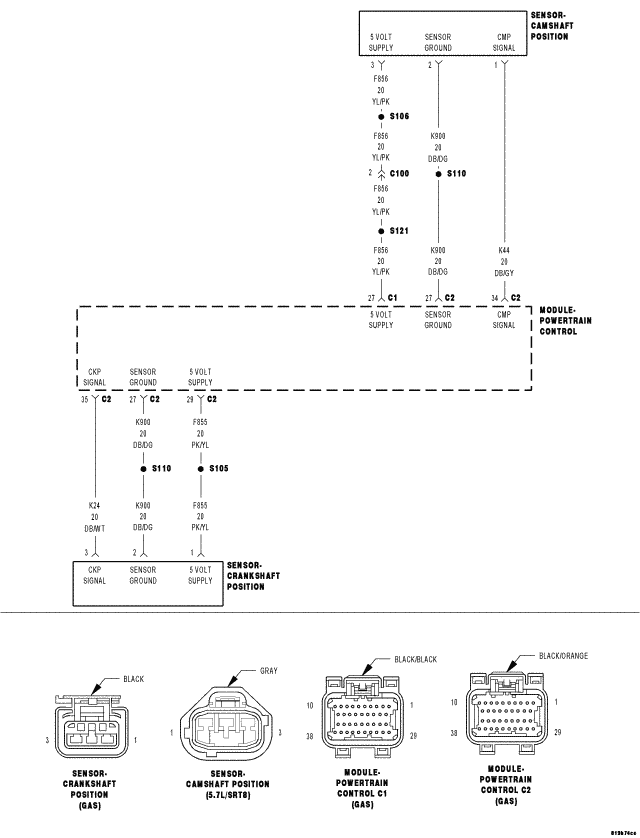

Fig 1: Camshaft Position Sensor Circuit Schematic
GC0052640Courtesy of CHRYSLER LLC
