Fuel Injector 7 (5.7L/SRT8) Connector End View

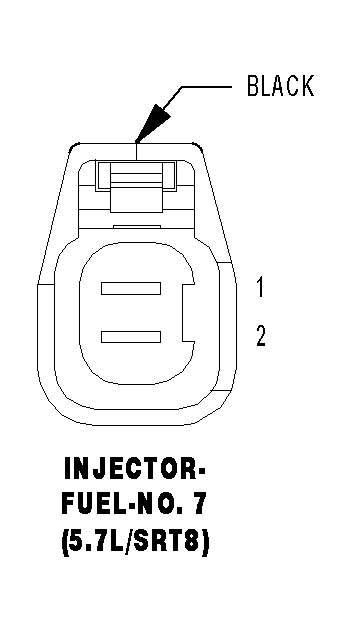

INJECTOR-FUEL-NO. 7 (5.7L/SRT8) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K26 20BR/YL |
INJECTOR CONTROL NO. 7 |
| 2 |
K343 16BR/YL |
FUSED ASD RELAY OUTPUT 2 |
