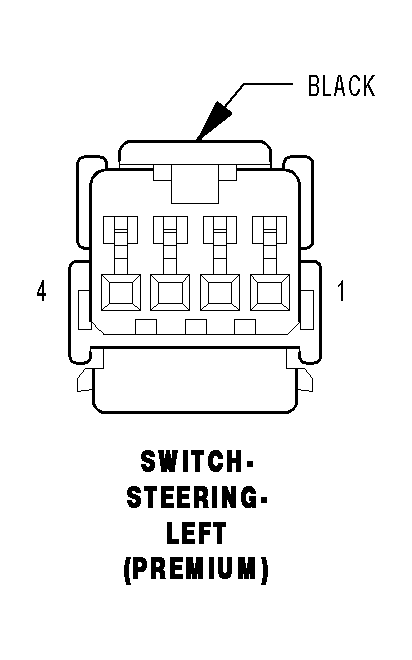

Left Steering Switch (Premium) Connector End View
SWITCH-STEERING-LEFT (PREMIUM) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G907 20VT |
EVIC/NAV MUX RETURN |
| 2 |
D503 20WT/OR |
LIN LIGHTING |
| 3 |
G106 20VT/OR |
EVIC MUX SIGNAL 1 |
| 4 |
G206 20VT/OR |
EVIC MUX SIGNAL 2 |
