Parking Brake Switch Connector End View

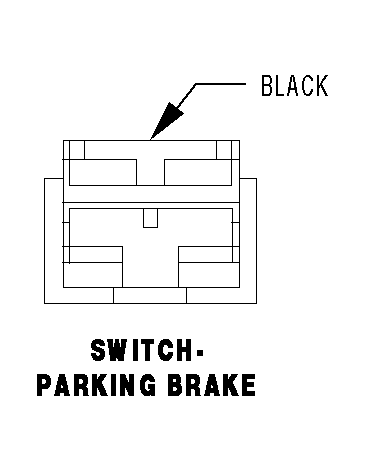

SWITCH-PARKING BRAKE - BLACK 1 WAY

GCLX680401Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 B25 20GY/BK PARK BRAKE SWITCH SENSE
