Removal






REMOVAL





1. Disconnect and isolate the battery negative cable.

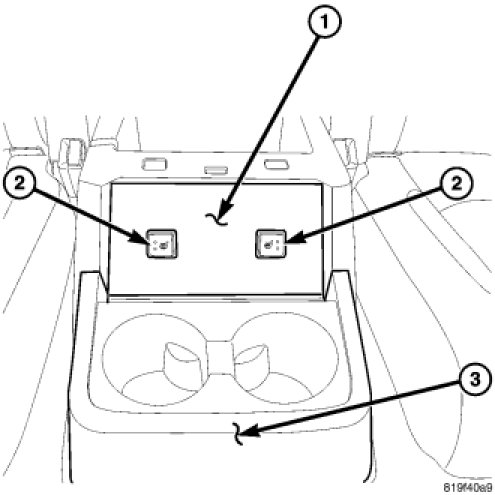

2. Using an appropriate flat bladed tool, remove the heated seat switch/modules (2) from the rear center floor console (3) by gently prying up from the edge of the switch/module bezel (1). Take care not to scratch or damage the console or bezel in any way.

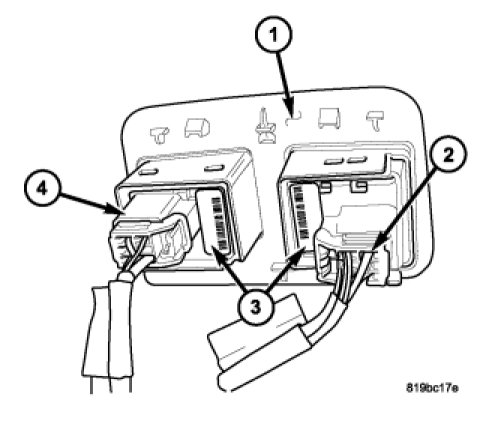

3. Disconnect the switch/module electrical connectors (2) and (4).

4. Using an appropriate flat bladed tool, remove the heated seat switch/module (3) from the bezel (1).
