Sensor-Knock No. 2

Component ID: 369
Component : SENSOR-KNOCK NO. 2

Connector:
Name : SENSOR-KNOCK NO. 2
Color : BLACK
# of pins : 2
Qualifier : (3.7L/5.7L)




Pin Description Circuit
1 KNOCK SENSOR NO. 2 SIGNAL K242 20DB/OR
2 KNOCK SENSOR NO. 2 RETURN K924 20DG/RD

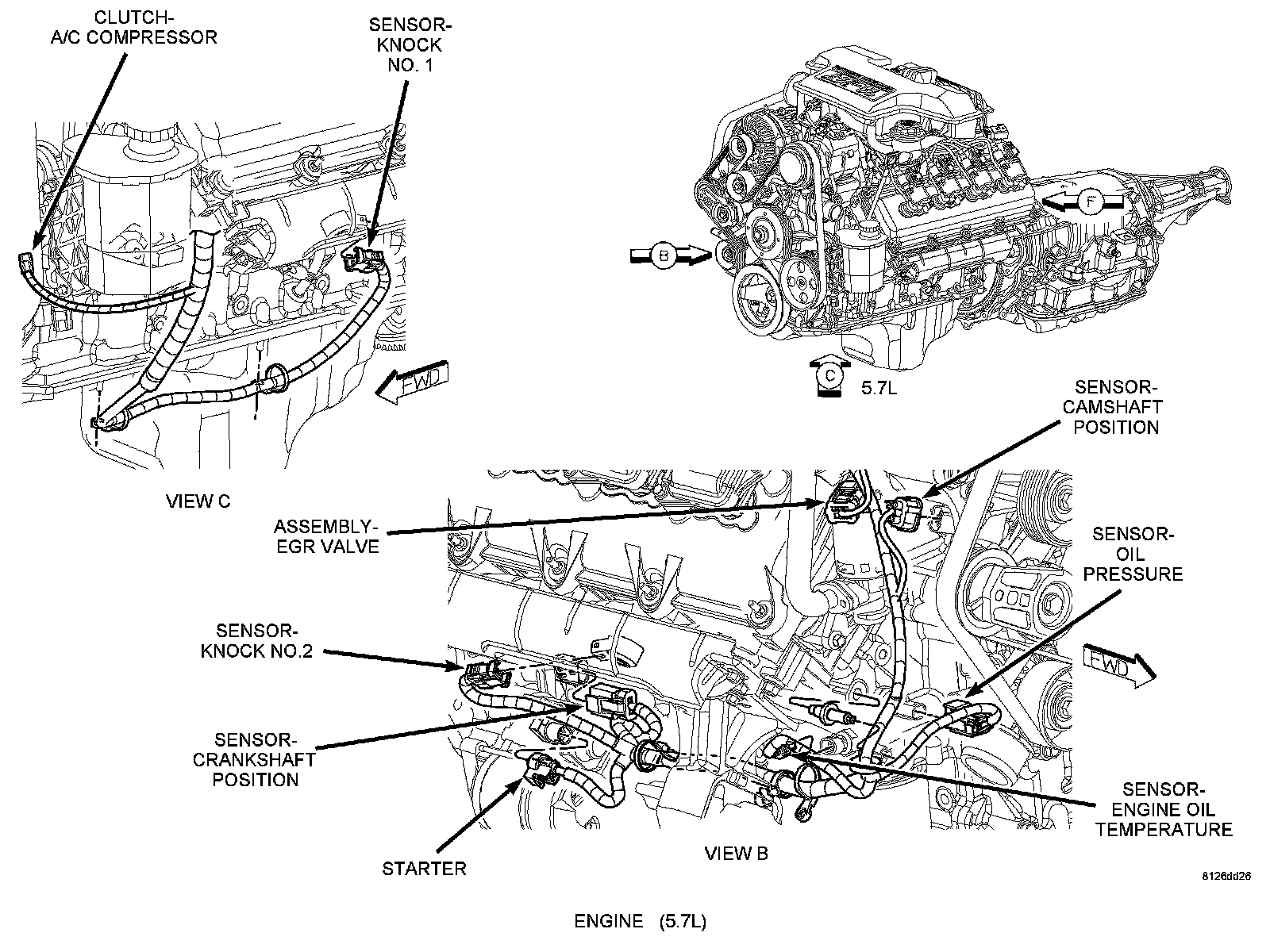

Component Location - 12




Component Location - 25
