Circuit Schematic

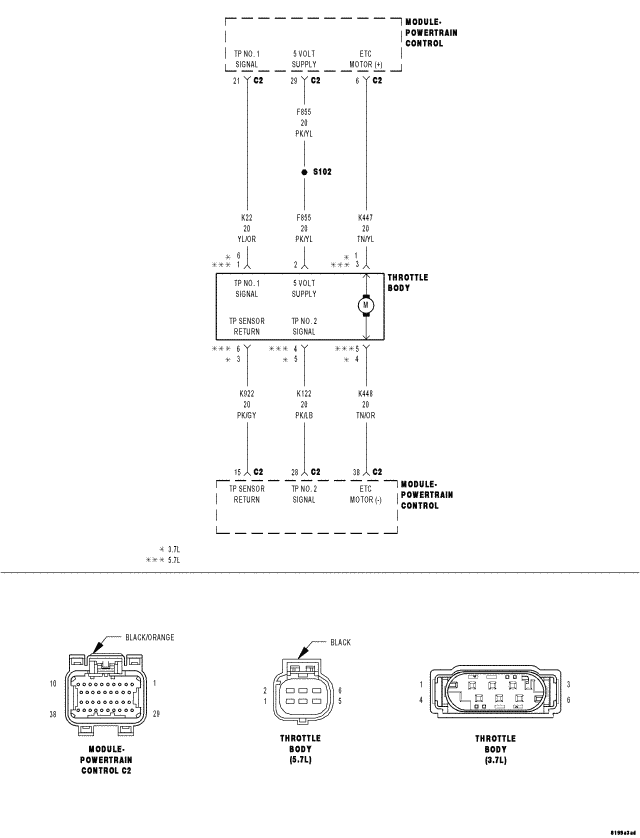

Fig 1: Electronic Throttle Control Motor Circuit Schematic
GC0058121Courtesy of CHRYSLER LLC
