Controller Antilock Brake

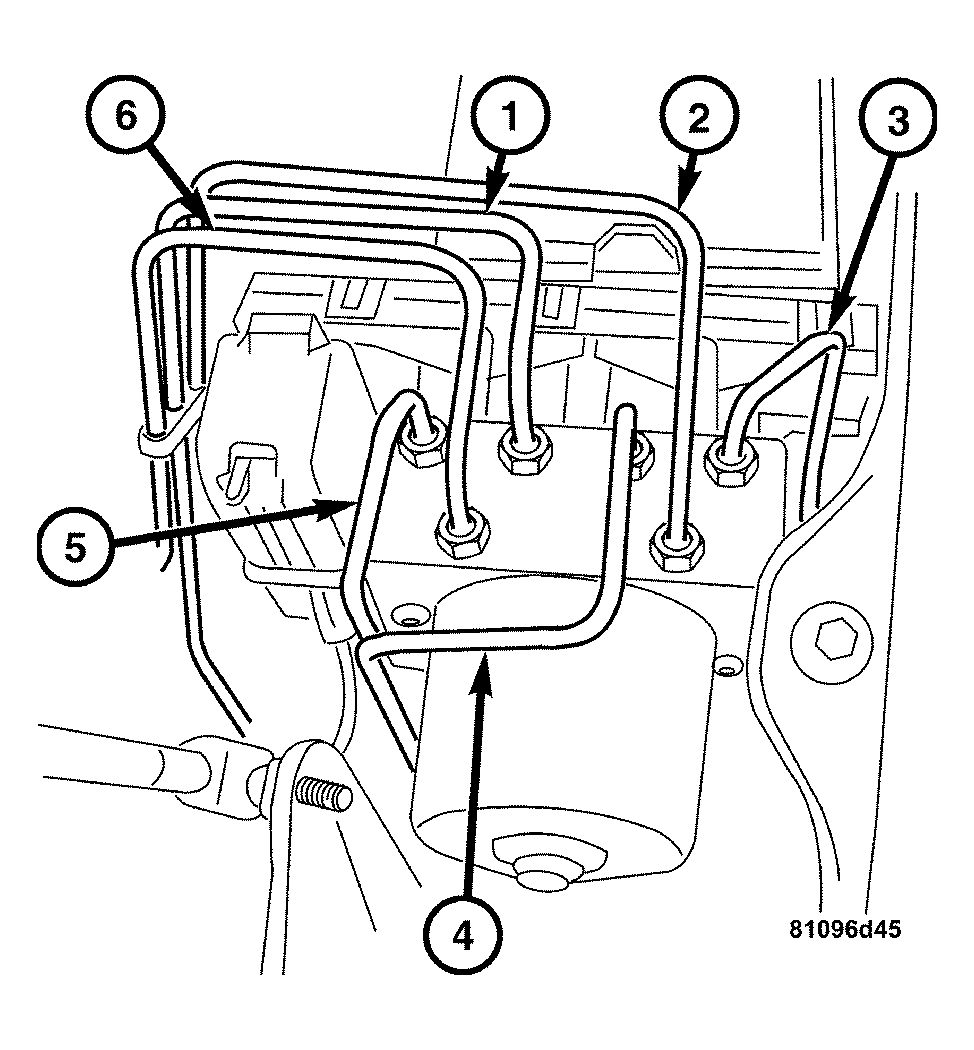

Fig 1: Identifying Hydraulic Lines
GC0034997Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Clean the top of the Hydraulic Control Unit (HCU) near the hydraulic lines.
    NOTE: To aid in reassembly, insure the hydraulic brake lines and corresponding connections at the HCU are clearly marked before disassembly.
  3. Disconnect the hydraulic lines (1-6) from the HCU. Cap the hydraulic lines and connections with plugs.

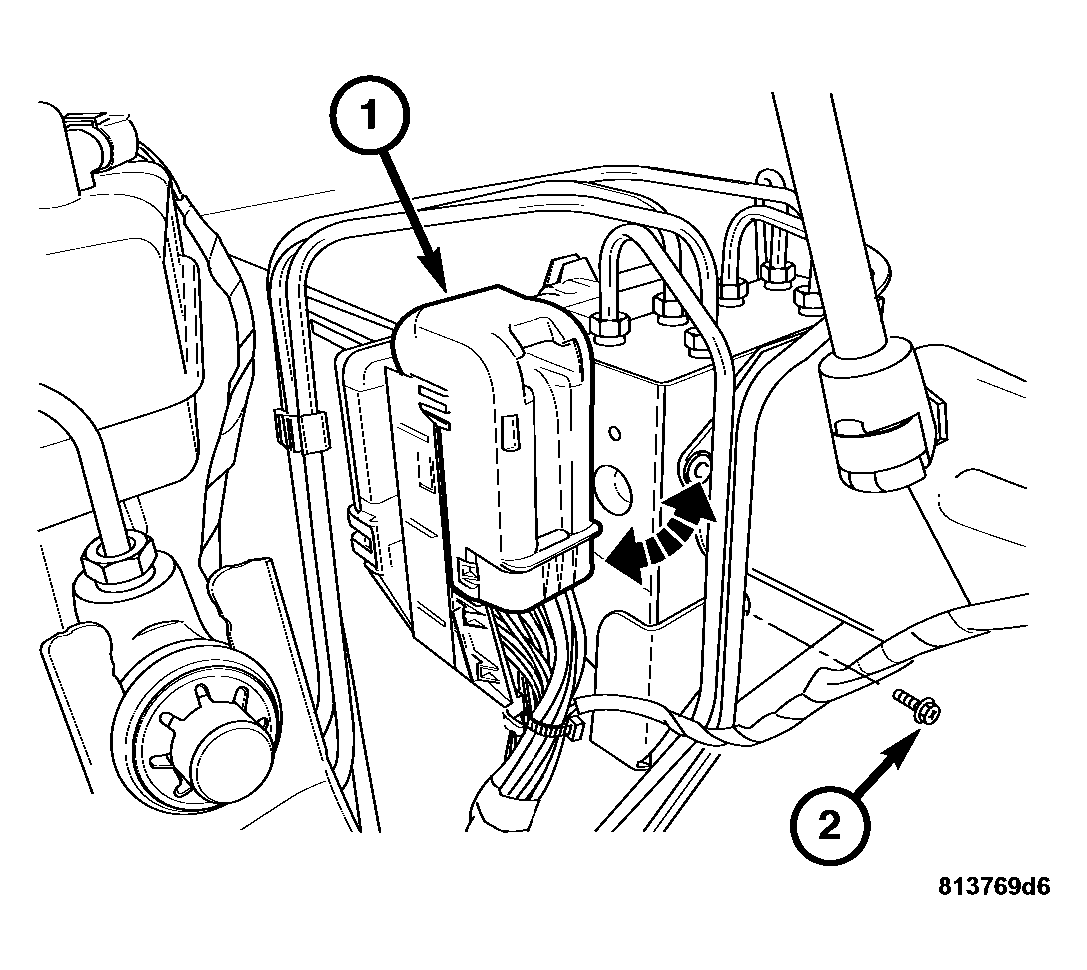

    Fig 2: Disconnecting/Connecting CAB Harness Connector
    GC0034999Courtesy of CHRYSLER LLC
  4. Disconnect the Controller Antilock Brake (CAB) harness connector (1).
  5. Remove the retaining screws (2) from the Integrated Control Unit (ICU) retaining bracket.
  6. Pull the ICU upwards, carefully pushing the hydraulic brake lines to one side.
  7. Remove the retaining screws that hold the CAB to the HCU and carefully separate the CAB from the HCU.
