Speed Control System Circuit Diagram

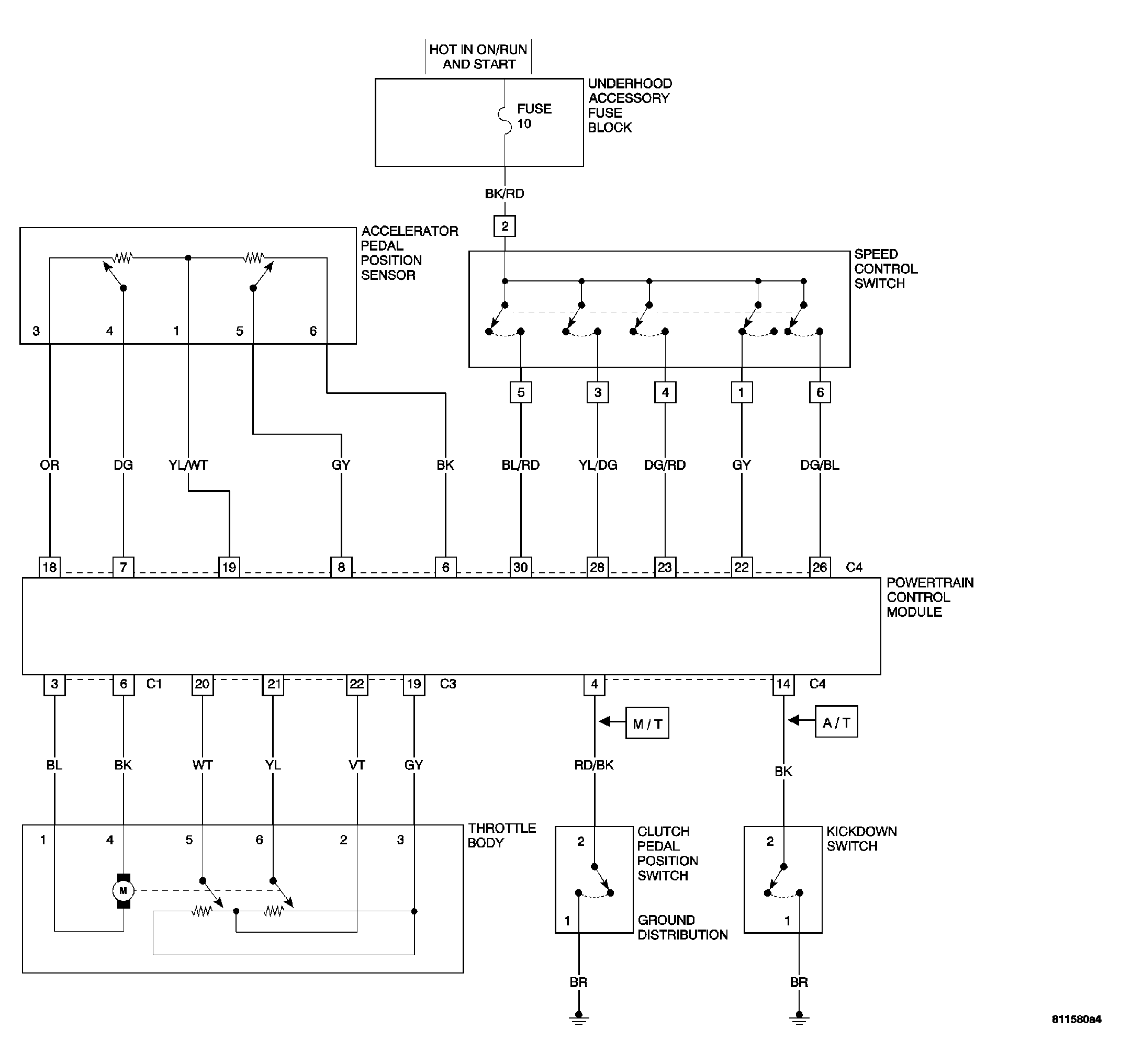

Fig 1: POWERTRAIN CONTROL MODULE (SPEED CONTROL) Circuit Schematic (2 OF 9)
GC0034024Courtesy of CHRYSLER LLC
