Diagnostic Test

1) MEASURE WIPER SWITCH MUX CIRCUIT VOLTAGE
NOTE: If any BCM DTCs are set, diagnose them first before continuing.

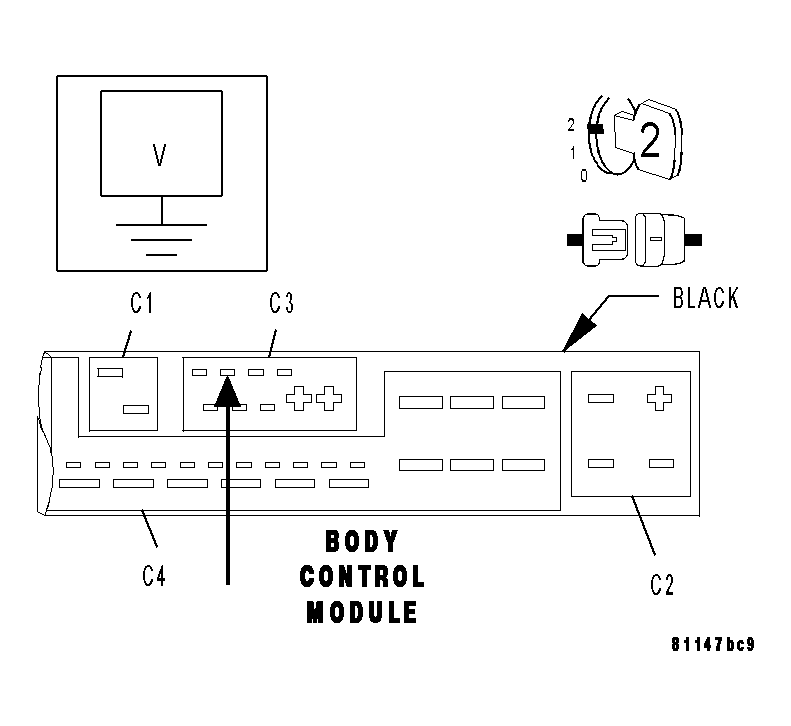

Fig 1: Checking Wiper Switch MUX Circuit
Courtesy of CHRYSLER LLC

Disconnect the BCM harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Turn the ignition on.

Measure the voltage of the Wiper Switch Mux circuit at cavity 65 of the BCM harness connector.

Is voltage present?

Yes
1. Go to step 2).
No
1. Replace the Body Control Module. Refer to REMOVAL .
2. Perform *BODY VERIFICATION TEST .
2) MEASURE MULTI-FUNCTION SWITCH VOLTAGE

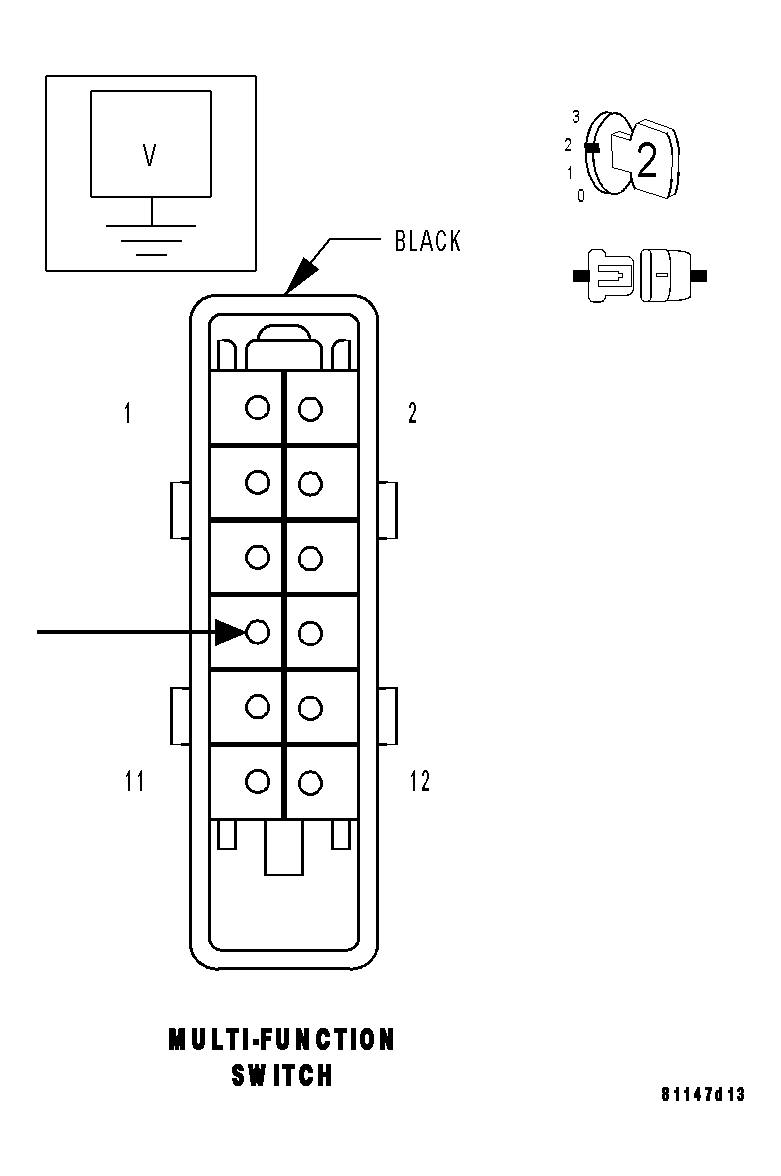

Fig 2: Measuring Multi-Function Switch Voltage
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Multi-Function Switch harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Turn the ignition on.

Measure the voltage of the Wiper Switch Mux circuit at cavity 7 of the Multi-Function Switch harness connector.

Is voltage present?

Yes
1. Repair the Wiper Switch Mux circuit for a short to voltage.
2. Perform *BODY VERIFICATION TEST .
No
1. Replace the Multi-Function Switch. Refer to REMOVAL .
2. Perform *BODY VERIFICATION TEST .
