DTC 1115-04: Rear Window Defogger Switch Sense Circuit: Notes

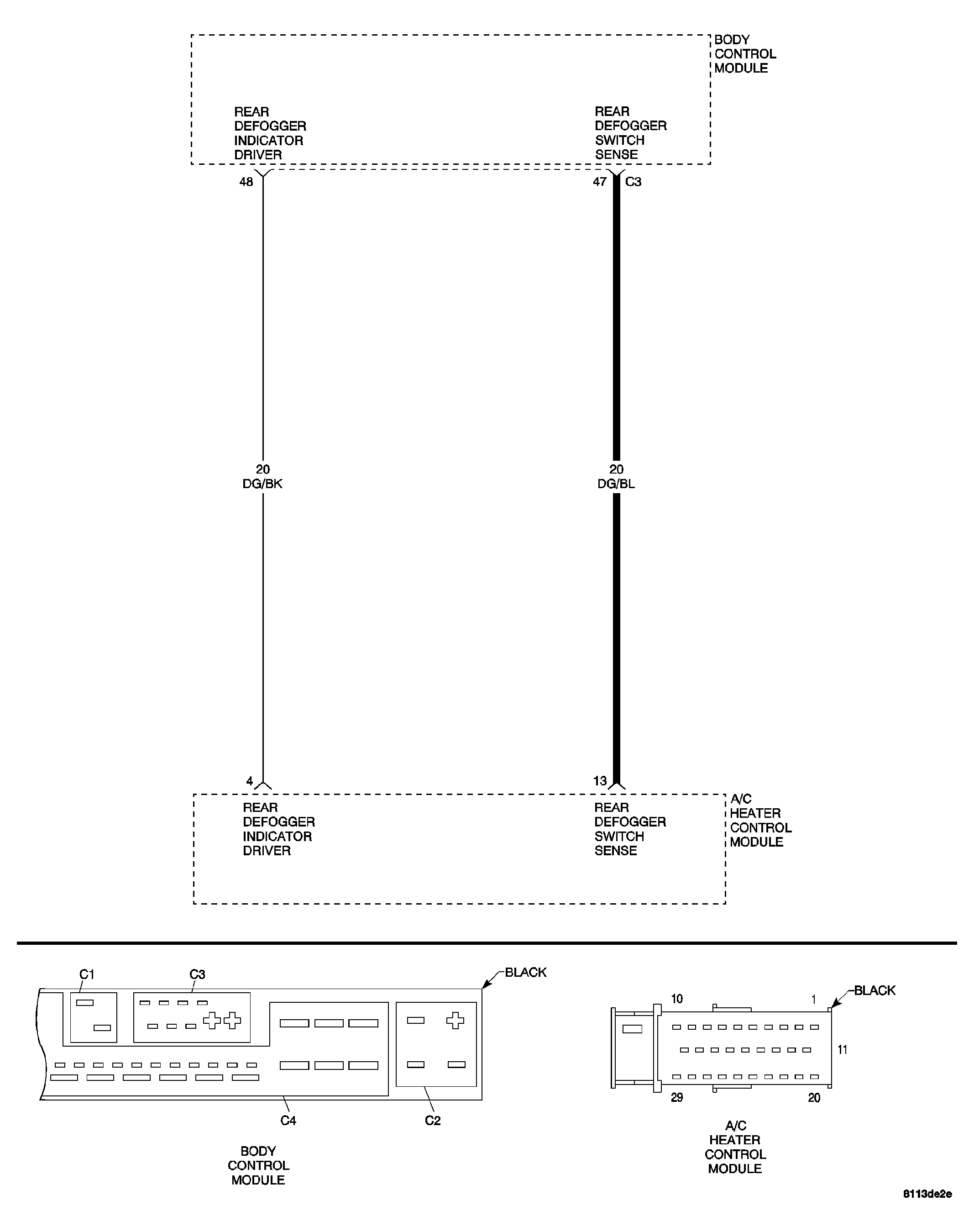

Fig 1: Rear Defogger Switch Sense Circuit Schematic
GC0035017Courtesy of CHRYSLER LLC
