Ignition System Circuit Diagram

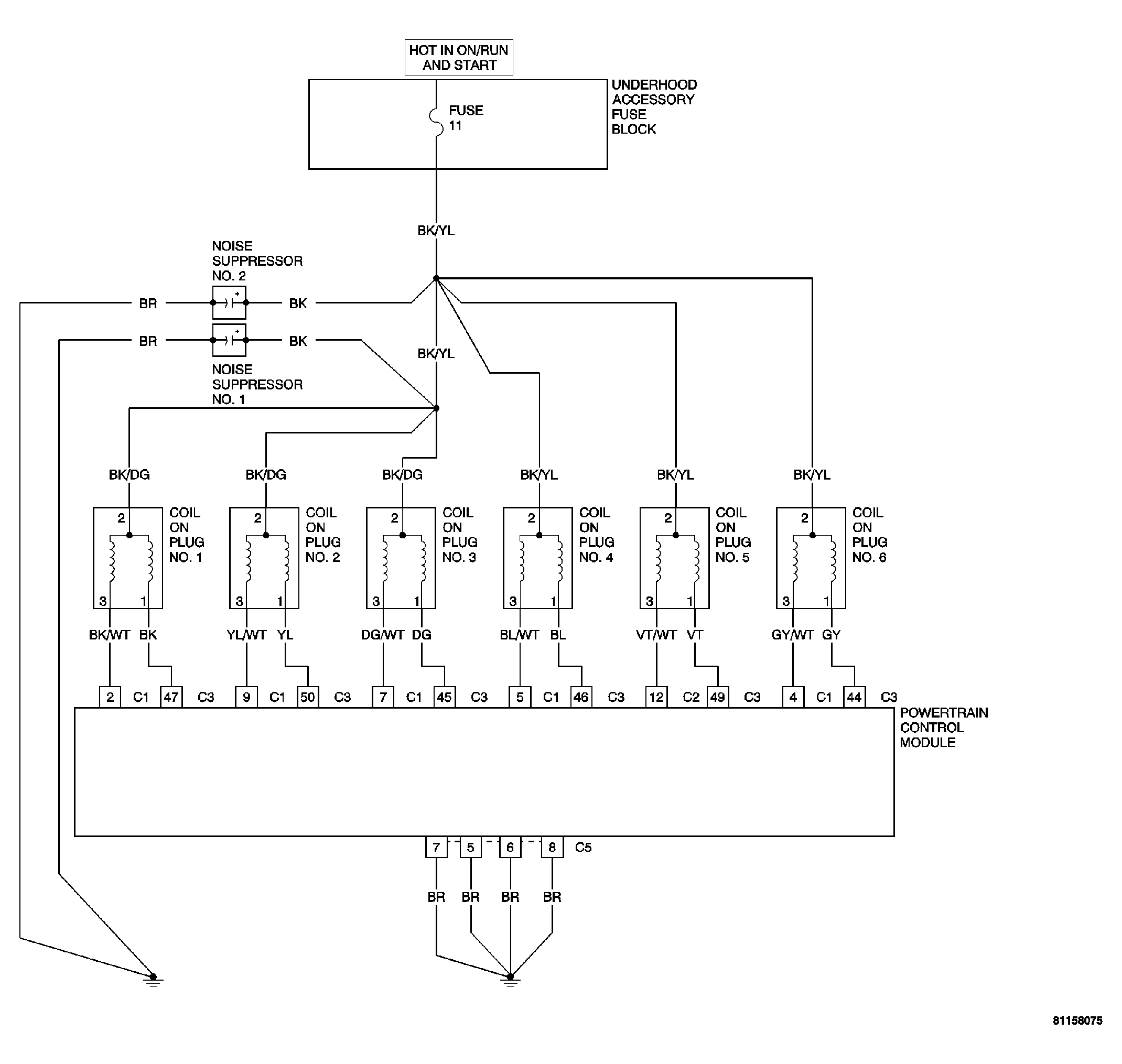

Fig 1: POWERTRAIN CONTROL MODULE (IGNITION SYSTEM) Circuit Schematic (1 OF 9)
GC0034023Courtesy of CHRYSLER LLC
