Removal - A/C Heater Control Module

WARNING: On vehicles equipped with airbags, disable the airbag system (refer to RESTRAINTS - SERVICE INFORMATION article) before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in an accidental airbag deployment and possible personal injury.

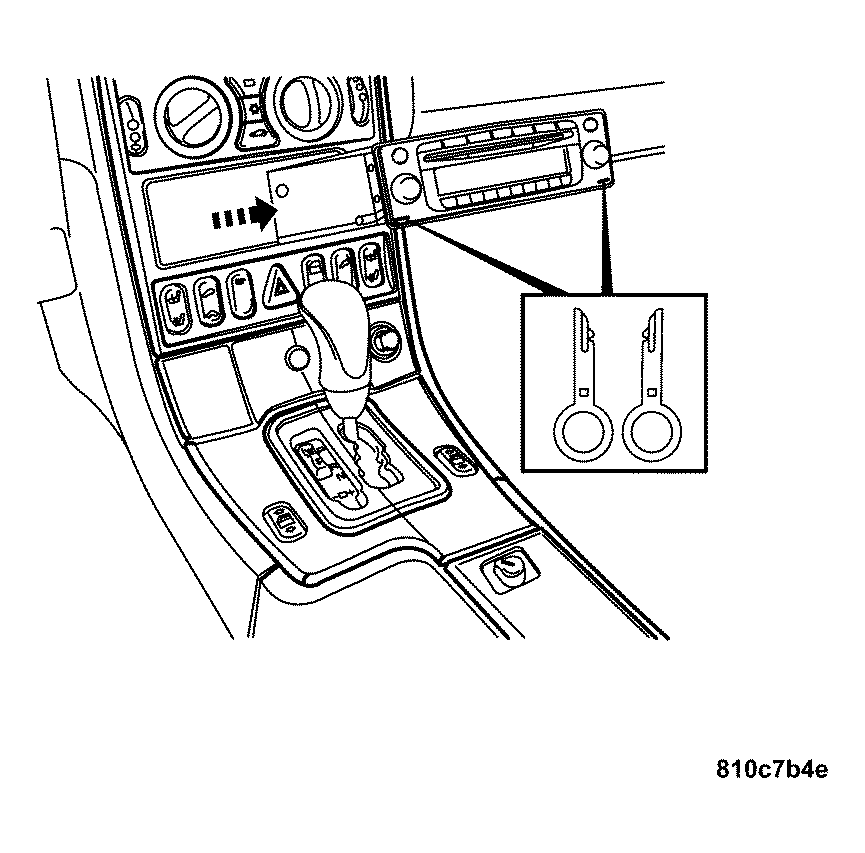

Fig 1: Removing/Installing Radio

Courtesy of CHRYSLER LLC

Disconnect the negative battery cable.
Remove the radio. Refer to REMOVAL .

Fig 2: Identifying Radio Screws & Cover
Courtesy of CHRYSLER LLC
Remove the center console panel screws (1). Position aside the finish panel (2). Refer to REMOVAL .

Fig 3: Identifying A/C Heater Control Module
Courtesy of CHRYSLER LLC
Pull out the A/C heater control module by pressing in the catch lugs (1) at the sides.

Fig 4: Disconnecting/Connecting A/C Heater Control Module Electrical Connector
Courtesy of CHRYSLER LLC
Disconnect the electrical connector (1) by swinging the retaining bow down.
Remove the A/C heater control module.
