Steering Flow And Pressure Testing: Notes

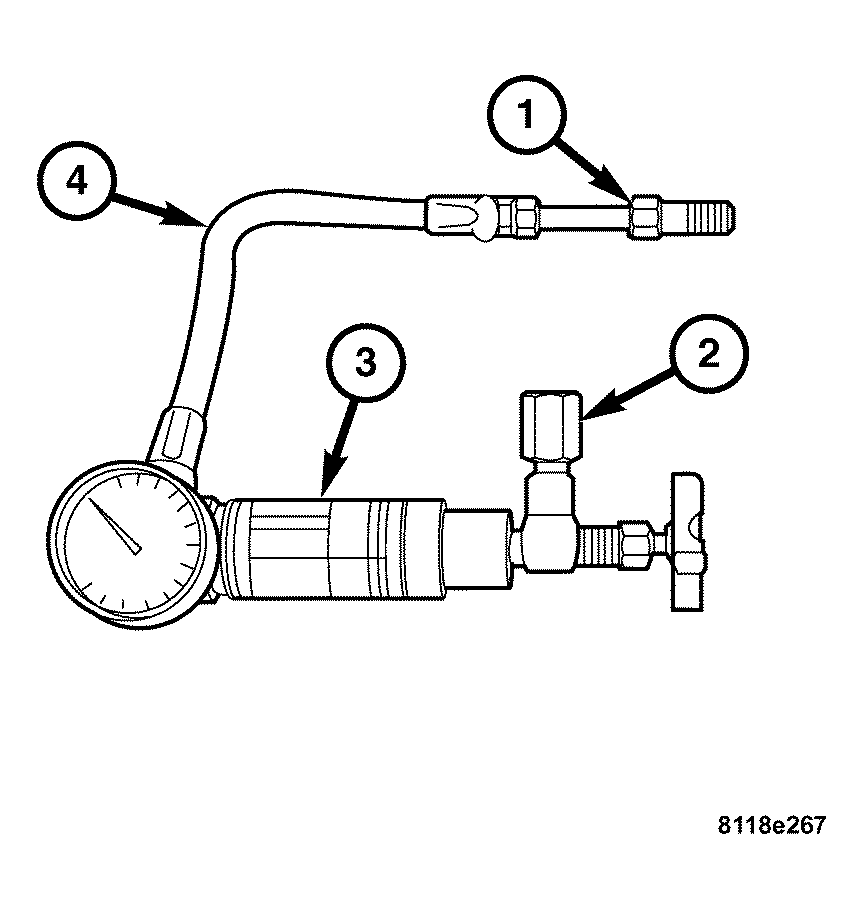

The following procedure is used to test the operation of the Power Steering System on the vehicle. This test will provide the Gallons Per Minute (GPM) or flow rate of the Power Steering Pump along with the maximum relief pressure. Perform the test any time a Power Steering System problem is present. This test will determine if the Power Steering Pump or the Power Steering Gear is functioning properly. The following pressure and flow test is performed using the standard shop tool "Power Steering Analyzer Tool Kit #6815" and the "Adapter Kit #6893".
