Installation - Detent Plug

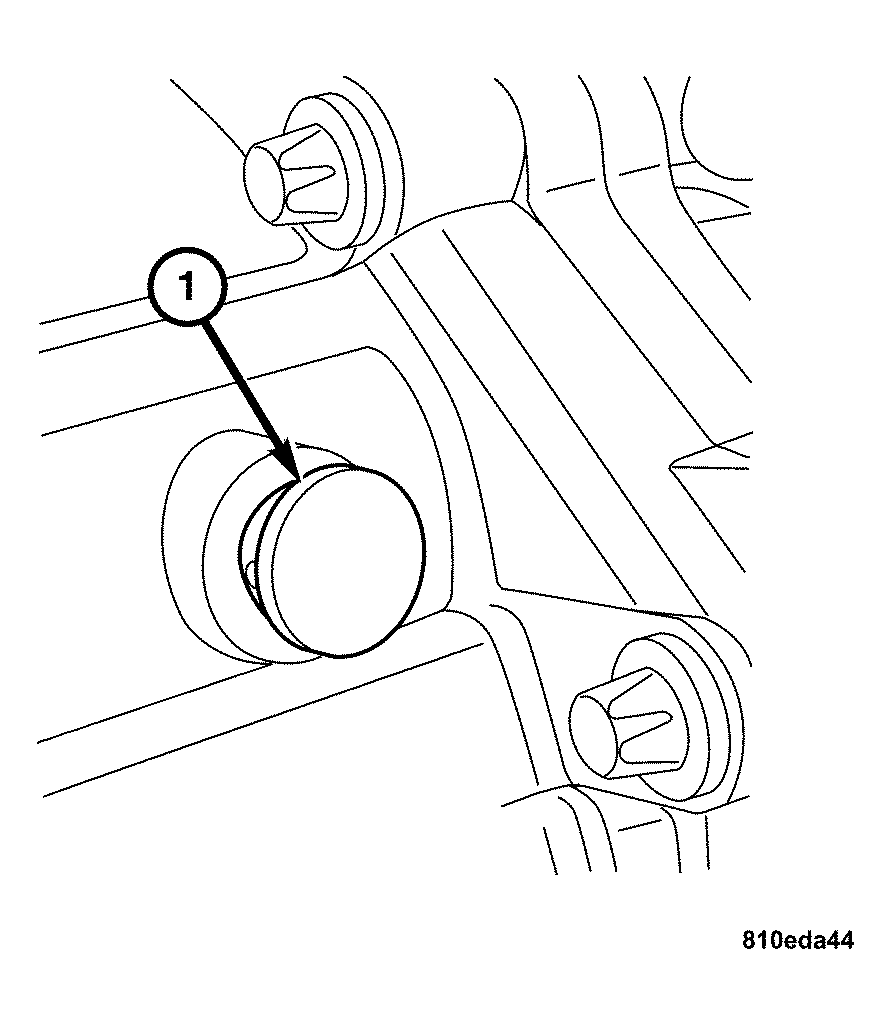

Fig 1: Removing/Installing Detent Plug
GC0032893Courtesy of CHRYSLER LLC
  1. Smooth any burrs or nicks in the detent plug bore.
  2. Use a plastic mallet to drive in and fully seat the detent plug (1).
  3. Install the transmission in the vehicle. See INSTALLATION .
