Sensor-Intake Camshaft Position

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover.
  2. Remove the air cleaner and throttle body hose.
  3. Disconnect negative battery cable.

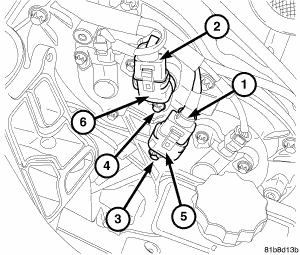

    Fig 1: Camshaft Position Sensor, Harness Connector And Mounting Bolt
    GC0065521Courtesy of CHRYSLER LLC
  4. Disconnect intake camshaft position sensor harness connector (2).
  5. Remove intake camshaft position sensor mounting bolt (4).
    Fig 2: Camshaft Position Sensor, Harness Connector And Mounting Bolt
    GC0065521Courtesy of CHRYSLER LLC
  6. Remove the intake cam position sensor (6).
