Brake Lamp Switch (A/T) Connector End View

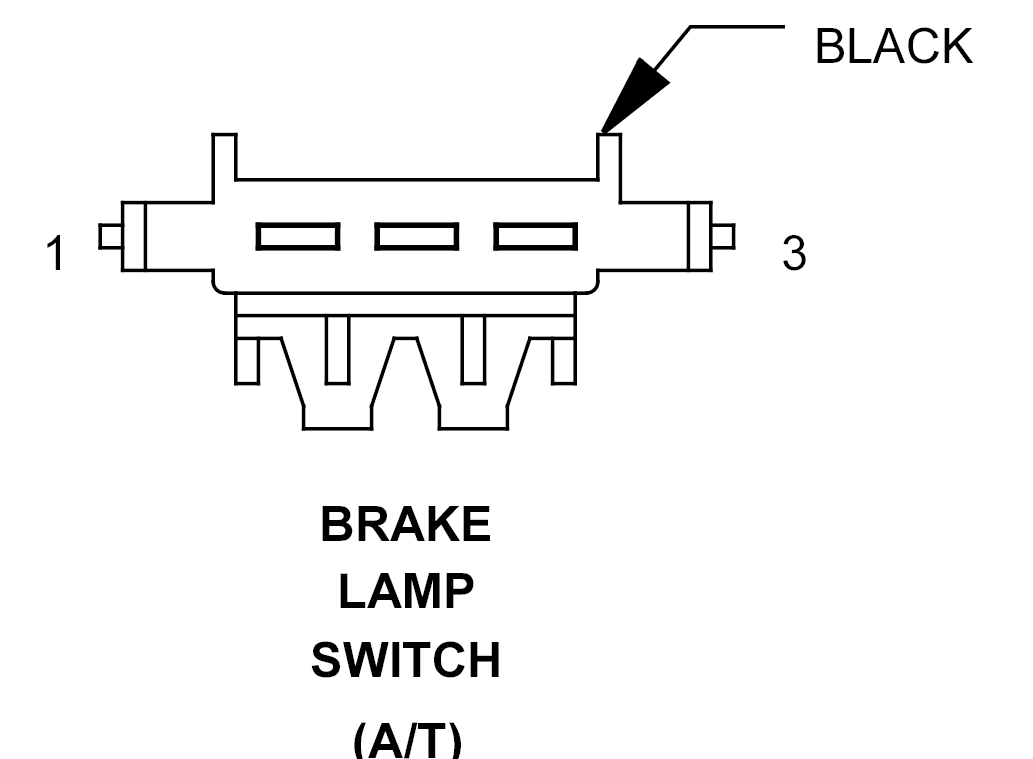

BRAKE LAMP SWITCH - BLACK 3-WAY (A/T)

GZH780025Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 20RD/YL TRACTION SYSTEM RELAY OUTPUT
3 20RD/BL BTSI FEED
