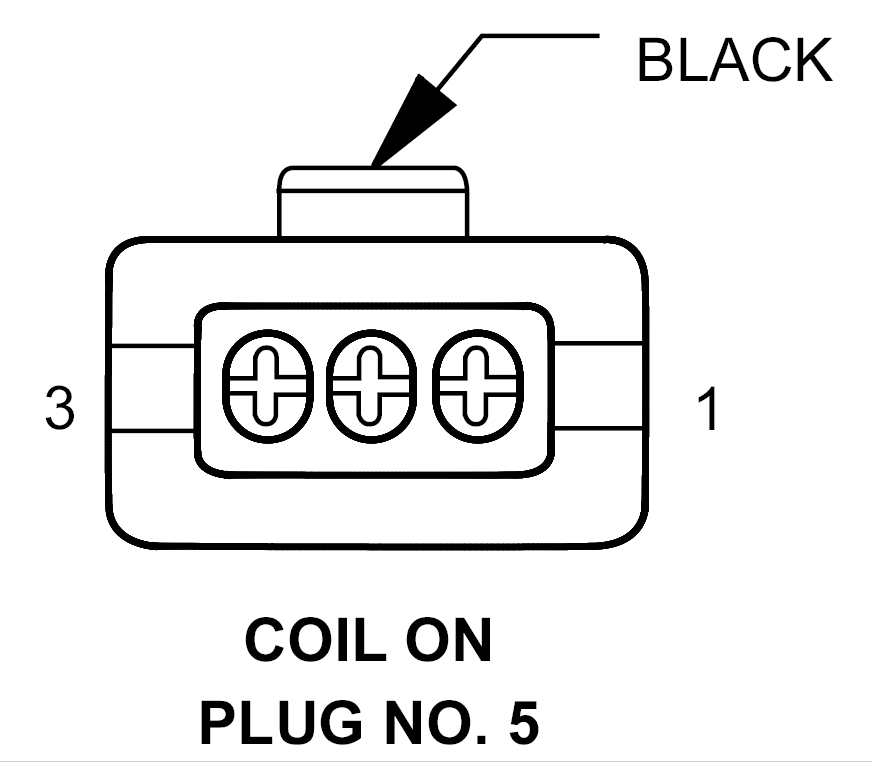

Coil On Plug 5 Connector End View
COIL ON PLUG NO. 5 - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18VT |
COIL ON PLUG DRIVER NO. 5 |
| 2 |
18BK/YL |
FUSED IGNITION SWITCH OUTPUT |
| 3 |
18VT/WT |
COIL ON PLUG DRIVER NO. 5 |
