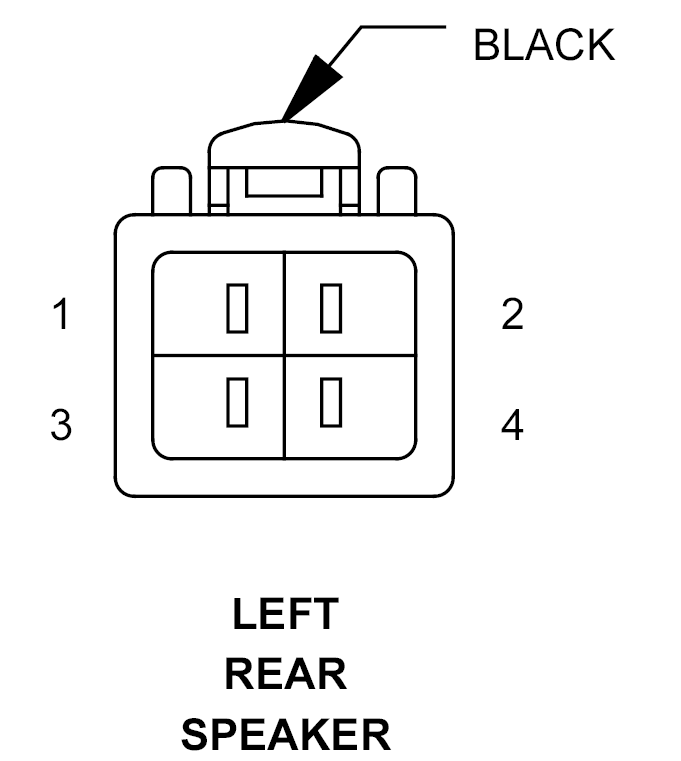

Left Rear Speaker Connector End View
LEFT REAR SPEAKER - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
16PK |
AMPLIFIED LEFT REAR SPEAKER (+) |
| 2 |
16DG |
AMPLIFIED LEFT REAR SPEAKER (-) |
| 3 |
16BL |
LEFT REAR SPEAKER SUPPLY VOLTAGE |
| 4 |
16BK/RD |
LEFT REAR SPEAKER GROUND |
