Dome Lamp (Hatchback) Connector End View

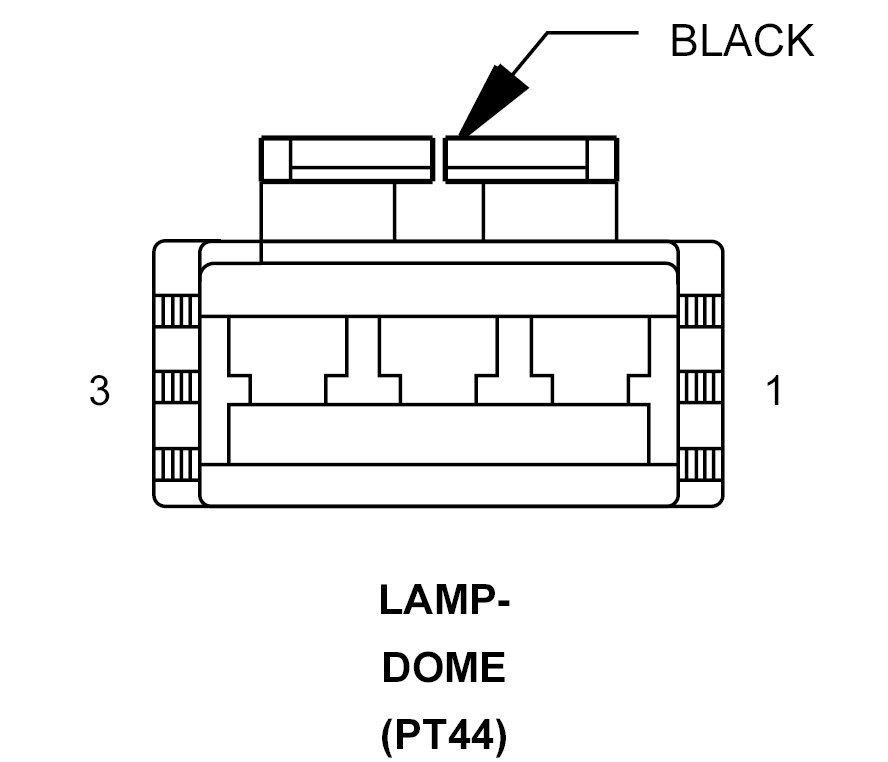

LAMP-DOME - BLACK 3-WAY (PT44)

GPT780153Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 Z906 20BK GROUND
