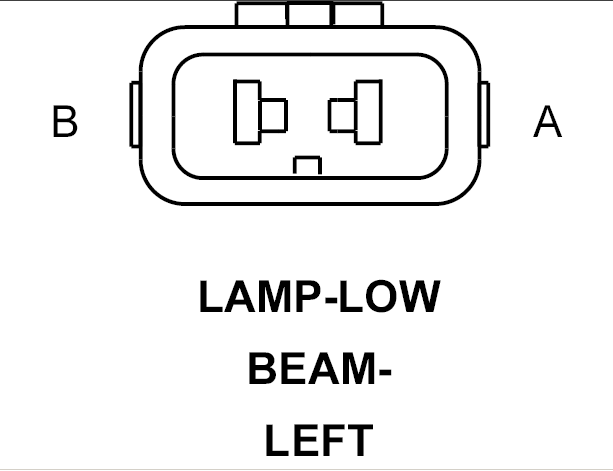

Left Low Beam Lamp Connector End View

LAMP-LOW BEAM-LEFT - 2-WAY

GPT780166Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A L43 20VT LEFT LOW BEAM OUTPUT
B Z902 20BK GROUND
