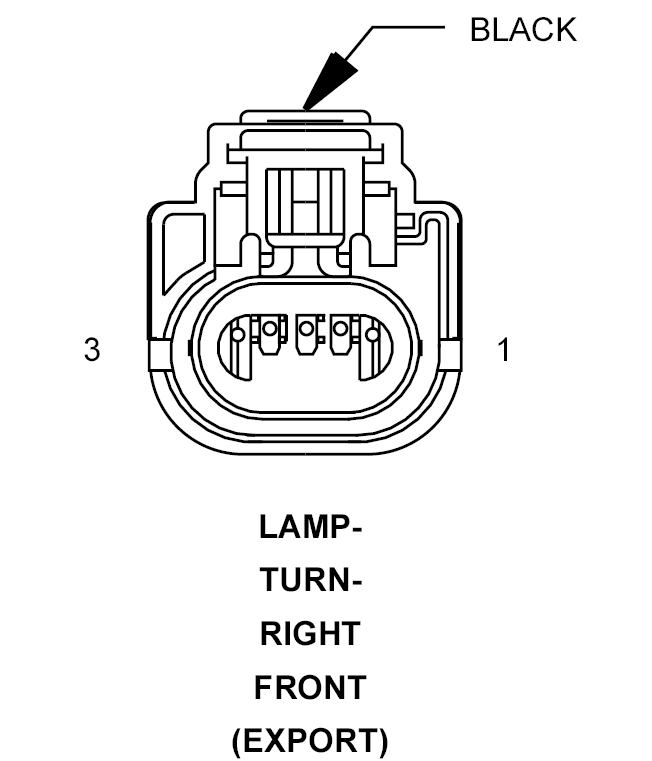

Right Front Turn Lamp (Export) Connector End View
LAMP-TURN-RIGHT FRONT - BLACK 3-WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z904 18BK |
GROUND |
| 2 |
- |
- |
| 3 |
L60 20TN |
RIGHT TURN SIGNAL (DIESEL) |
| 3 |
L60 20WT/TN |
RIGHT TURN SIGNAL (GAS) |
