PT Cruiser Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
DTCS B1B21 To B1B82
>>
B1B7E-Passenger Seat Weight Sensor 2 - Right Front Input Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

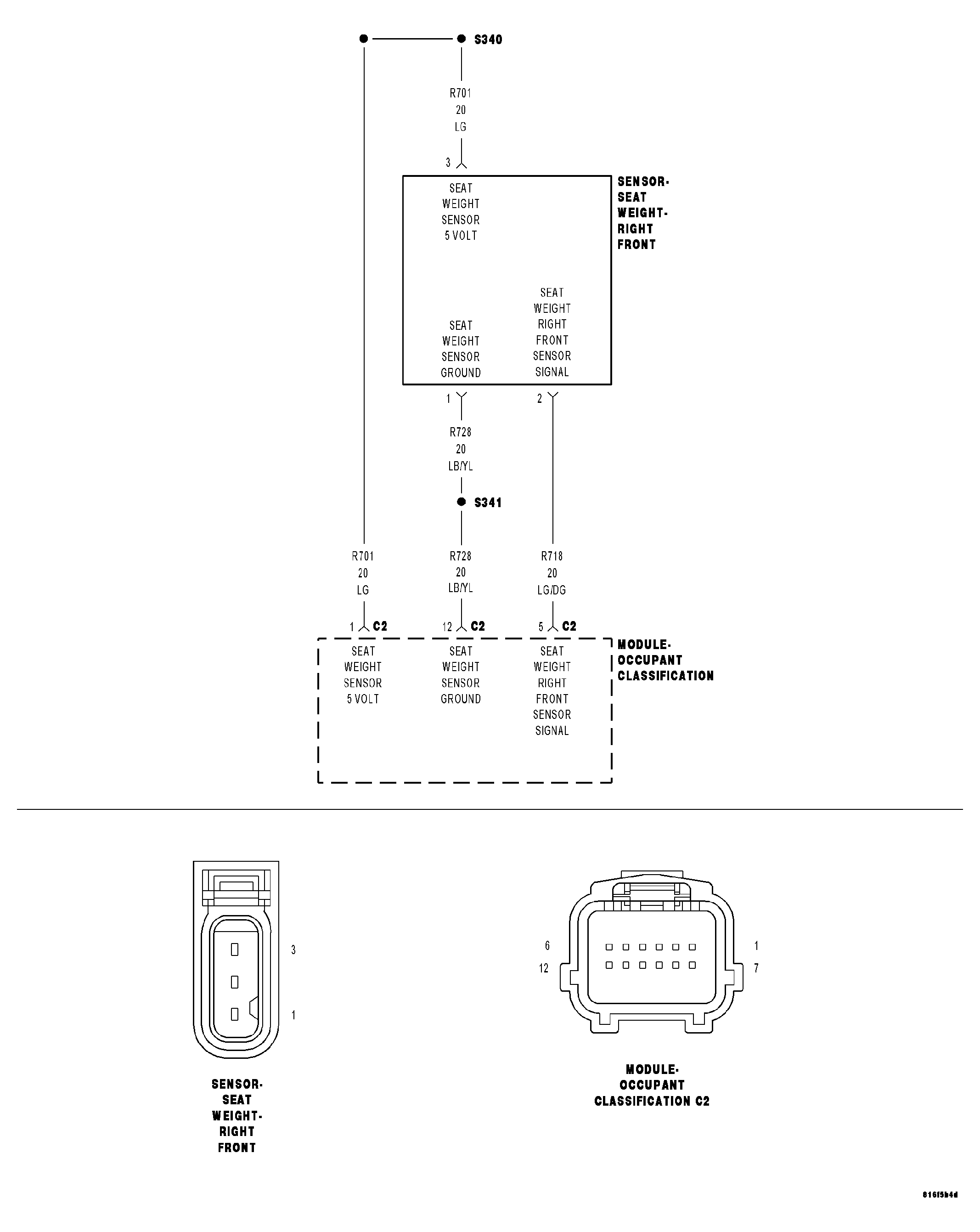

Fig 1: Passenger Seat Weight Sensor 2 Circuit Schematic
