Intake Air Temperature Sensor (Diesel) Connector End View

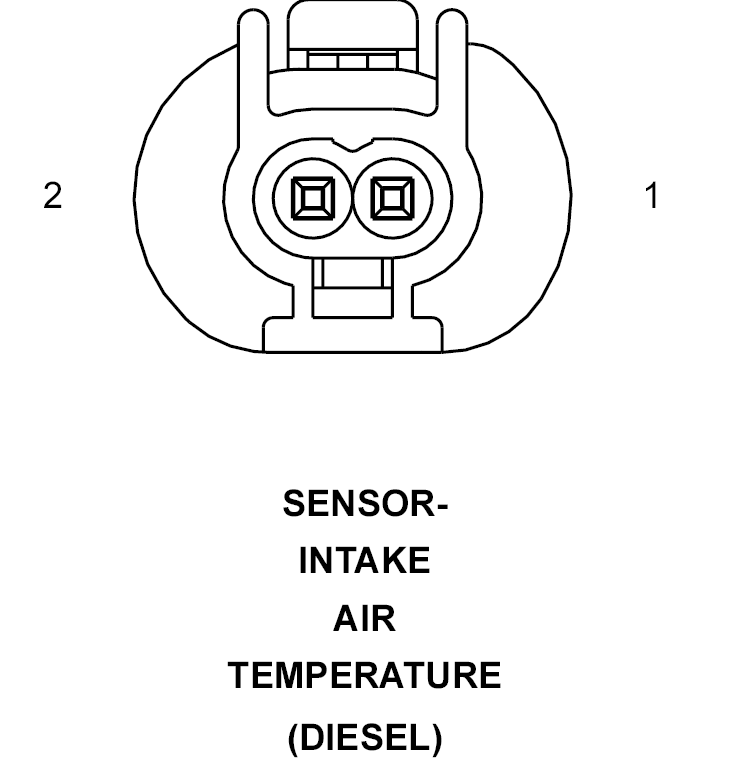

SENSOR-INTAKE AIR TEMPERATURE - 2-WAY (DIESEL)

GPT780289Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K900 20BR/VT SENSOR GROUND
2 K21 20BR/VT IAT SIGNAL
