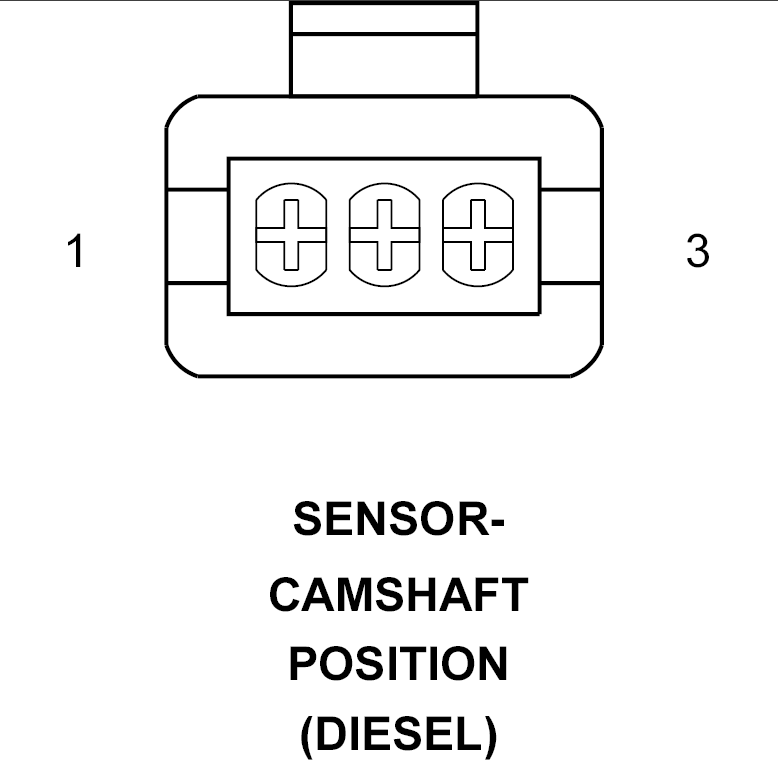

Camshaft Position Sensor (Diesel) Connector End View
SENSOR-CAMSHAFT POSITION - 3-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K944 20BR/LG |
CMP SENSOR GROUND |
| 2 |
K44 20YL/GY |
CMP SIGNAL |
| 3 |
K844 20RD/VT |
CMP 5 VOLT SUPPLY |
