Left Front Door Speaker Connector End View

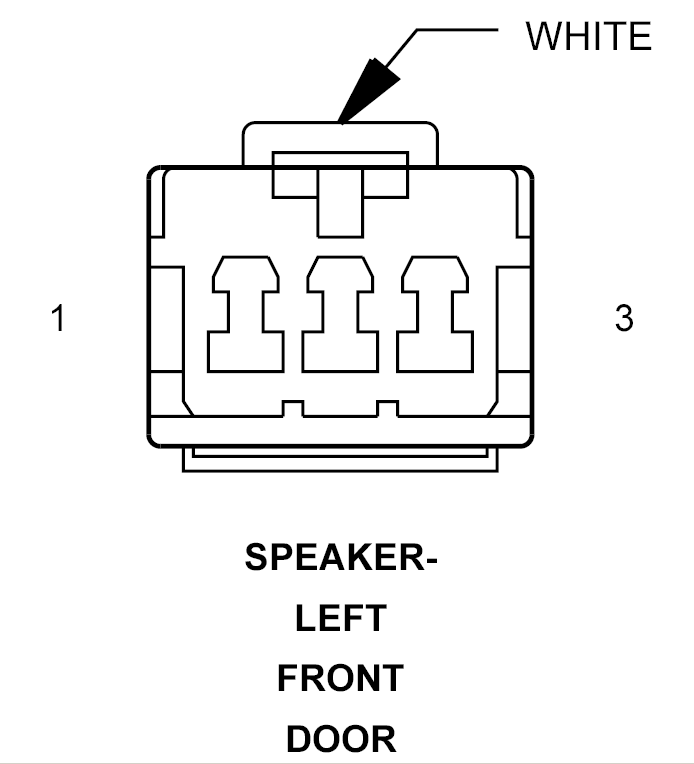

SPEAKER-LEFT FRONT DOOR - WHITE 3-WAY

GPT780328Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 X153 18DG/YL LEFT FRONT DOOR SPEAKER (+)
2 - -
3 X155 18DG/LB LEFT FRONT DOOR SPEAKER (-)
