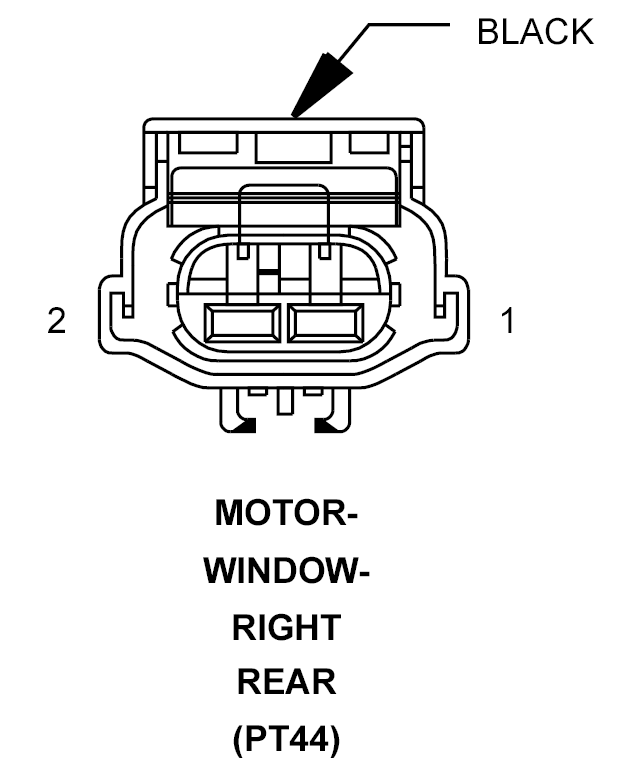

Right Rear Window Motor (Hatchback) Connector End View
MOTOR-WINDOW-RIGHT REAR - BLACK 2-WAY (PT44)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q212 14TN/LB |
RIGHT REAR WINDOW DRIVER (DOWN) |
| 2 |
Q112 14TN/YL |
RIGHT REAR WINDOW DRIVER (UP) |
