SKREEM/WCM (If Equipped)

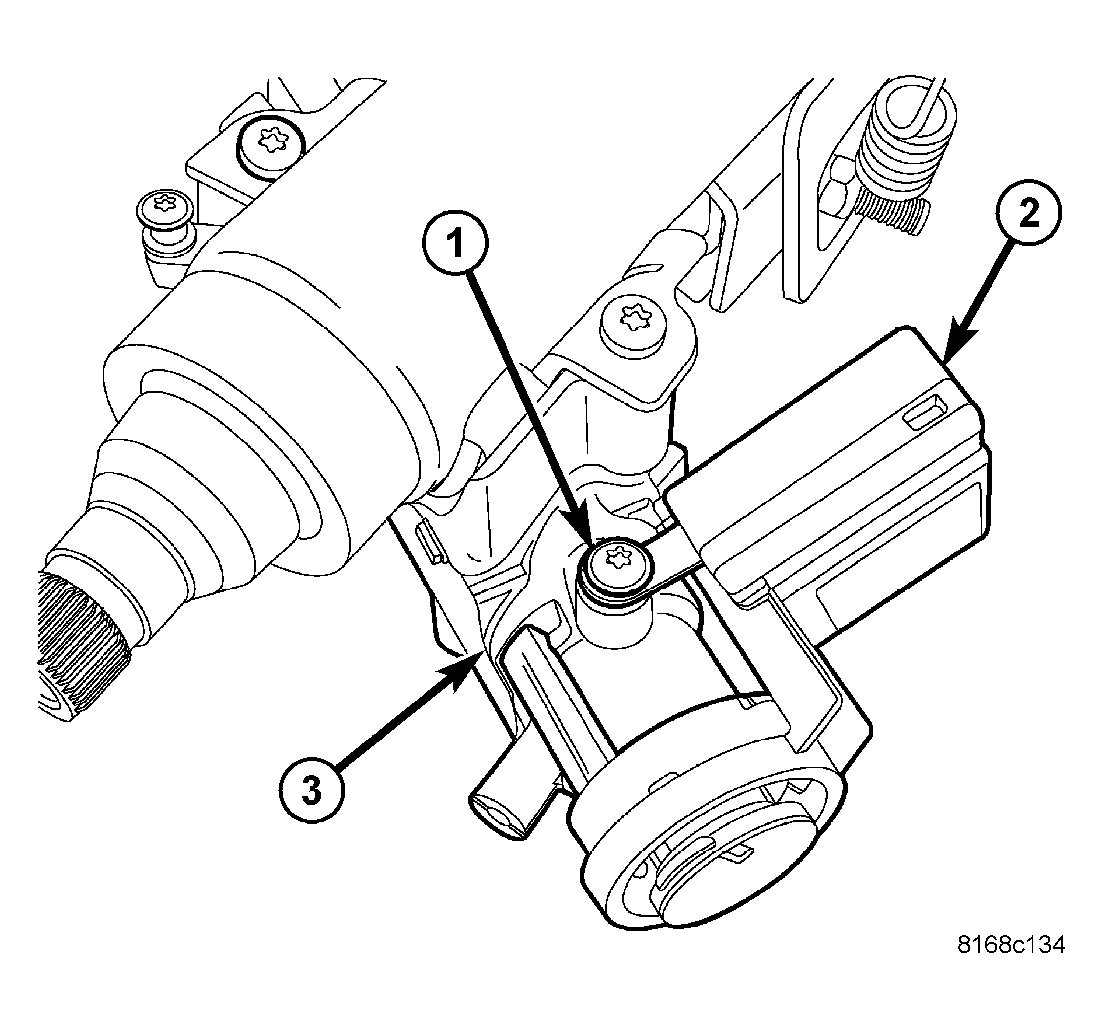

Fig 1: Identifying SKREEM (WCM) Mounting Screw
GC0042956Courtesy of CHRYSLER LLC
  1. Slide the ring of the SKREEM/WCM (2) over the lock cylinder housing (3) and engage the retainer fingers in the recesses formed on the lock cylinder housing.
  2. Install the screw (1) fastening the SKREEM/WCM (2) to the lock cylinder housing (3). Tighten the screw to 3.5 N.m (31 in. lbs.).
